UNI-T UTi Mobile Infrared Thermal Camera for Android & iPhone

Product overview

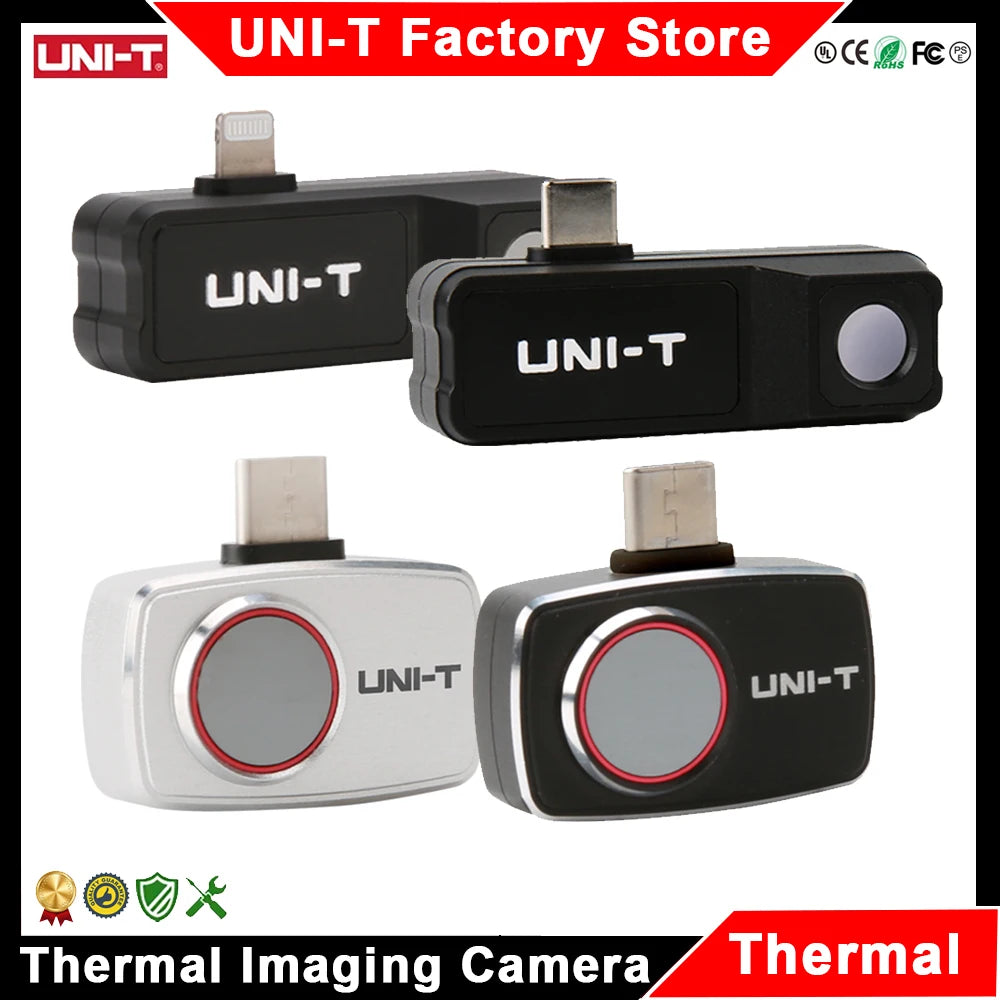

Turn a compatible smartphone into a portable infrared inspection tool with the UNI-T UTi mobile thermal camera series. The range includes dedicated models for Android phones and a separate iPhone/iOS model, with 25 Hz imaging, adjustable emissivity, multiple measurement tools and detector options up to 256 × 192 pixels.

Series highlights

• 120 × 90 or 256 × 192 infrared resolution: Select the detector resolution appropriate for general troubleshooting or more detailed thermal inspection.
• 25 Hz real-time imaging: Smooth thermal viewing for scanning equipment, electrical systems, HVAC components and building surfaces.
• Wide model-specific temperature ranges: Options cover -20°C to 200°C, 400°C, 450°C or 550°C depending on the selected model.
• Adjustable emissivity: 0.01–0.99 adjustment helps match different target materials.
• Temperature analysis tools: Measure points, lines and rectangular regions; selected models also support circular regions.
• High/low tracking and alarms: Track center, highest and lowest temperatures and set temperature thresholds.
• Seven color palettes: Choose a palette suited to the target and inspection environment.
• Multiple image modes: Thermal imaging, fusion and picture-in-picture modes are supported through the compatible app.

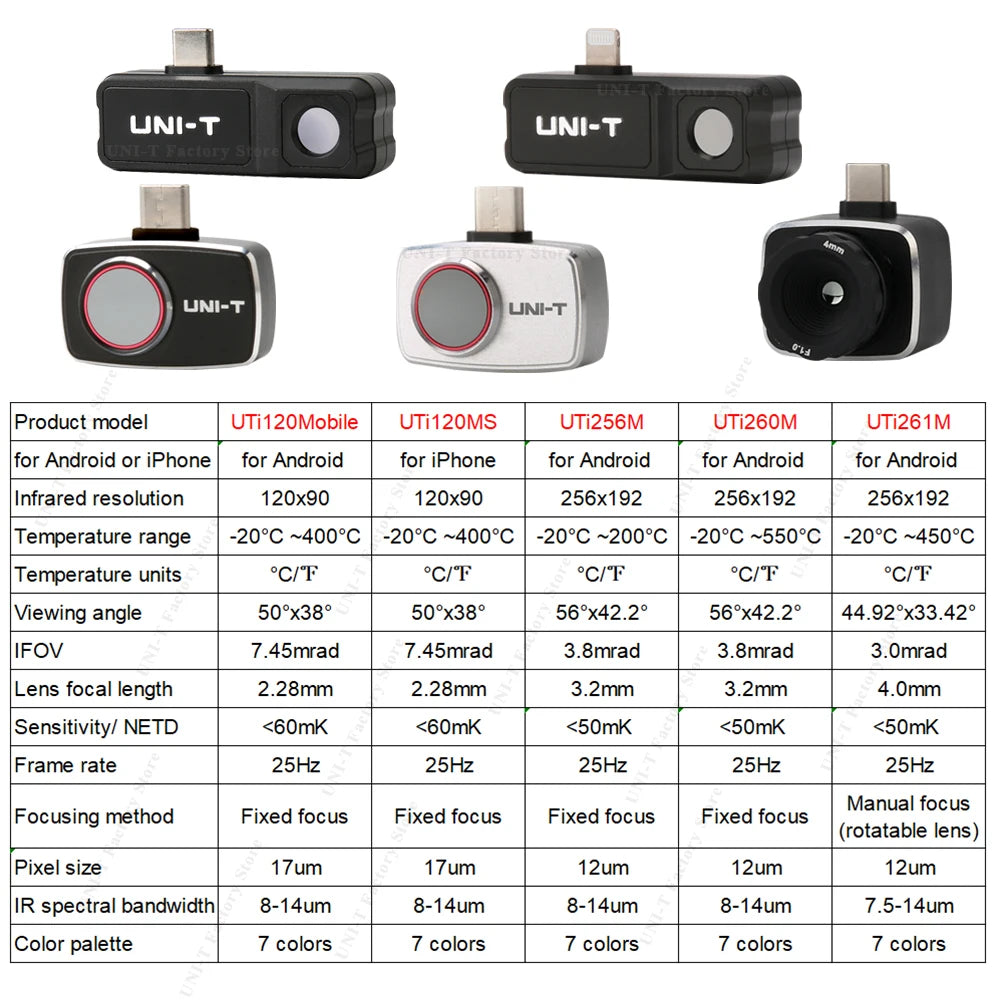

Model comparison

Important: Specifications follow the selected model. Do not use the maximum resolution or temperature range shown for one version to evaluate another version.

Additional technical specifications

• Frame rate: 25 Hz across the listed models
• Stated accuracy: ±2°C or ±2%, whichever value is greater, subject to measurement conditions
• Thermal sensitivity: <60 mK for UTi120Mobile/UTi120MS; <50 mK for UTi256M/UTi260M/UTi261M
• Pixel pitch: 17 μm for UTi120Mobile/UTi120MS; 12 μm for the 256 × 192 models
• Spectral range: 8–14 μm for most models; 7.5–14 μm for UTi261M
• Lens focal length: 2.28 mm, 3.2 mm or 4.0 mm depending on model
• Temperature units: °C / °F
• Interface languages: Chinese and English according to the supplied comparison chart

How to choose

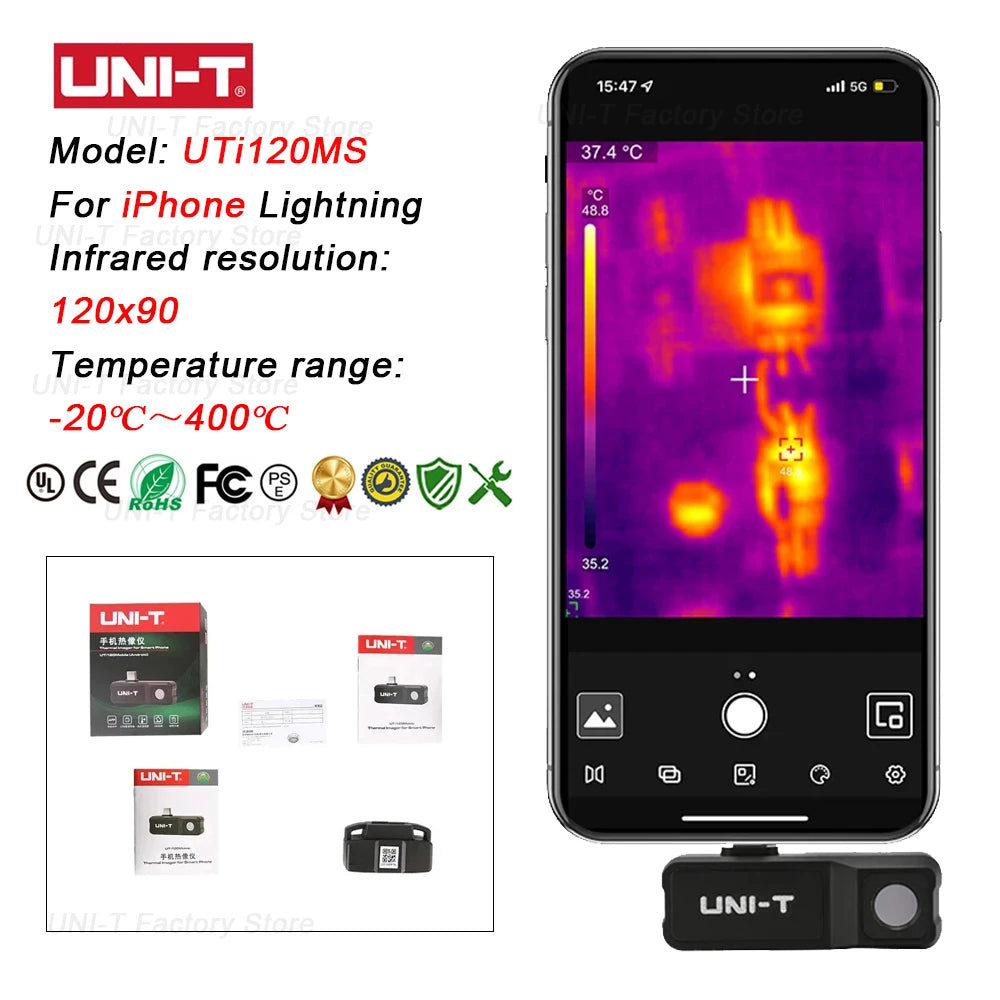

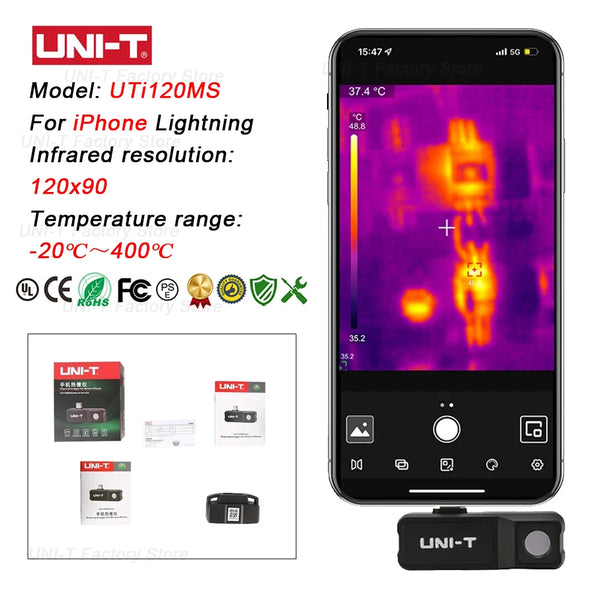

• For iPhone/iOS: choose UTi120MS and verify the connector matches your specific iPhone.

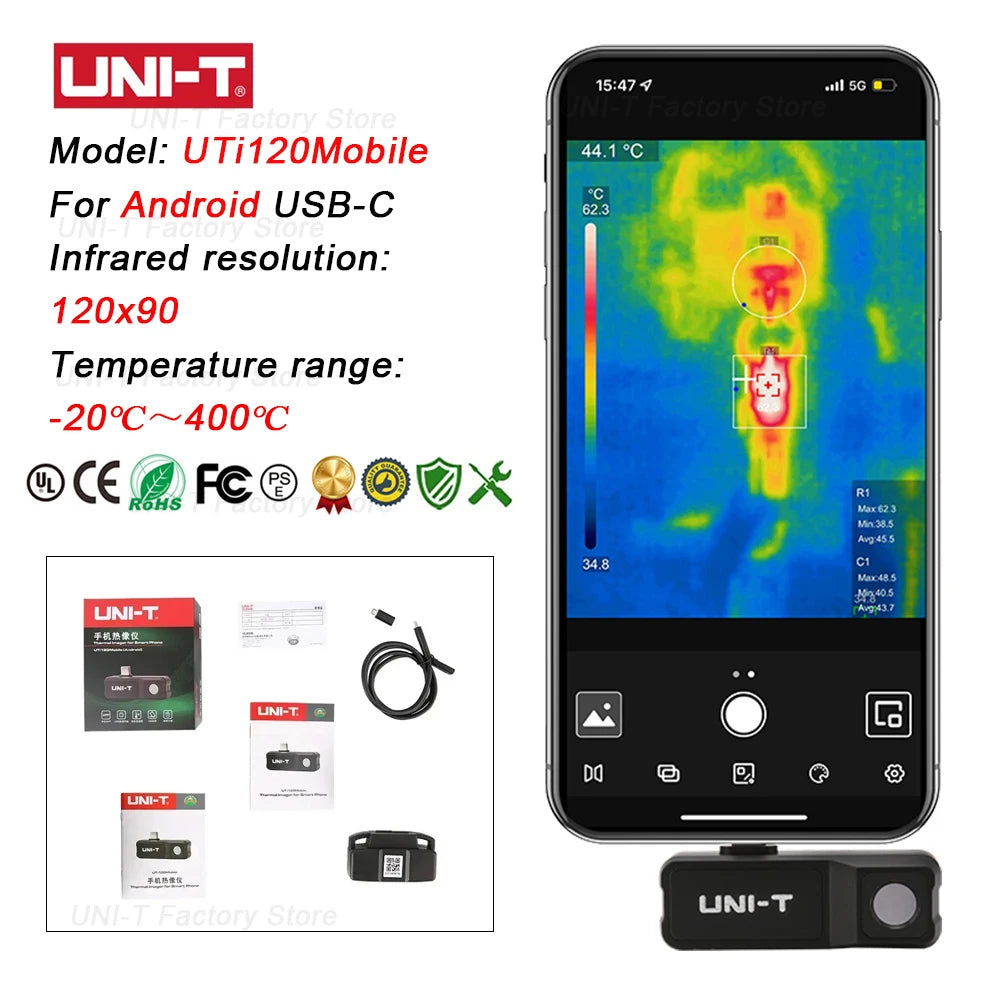

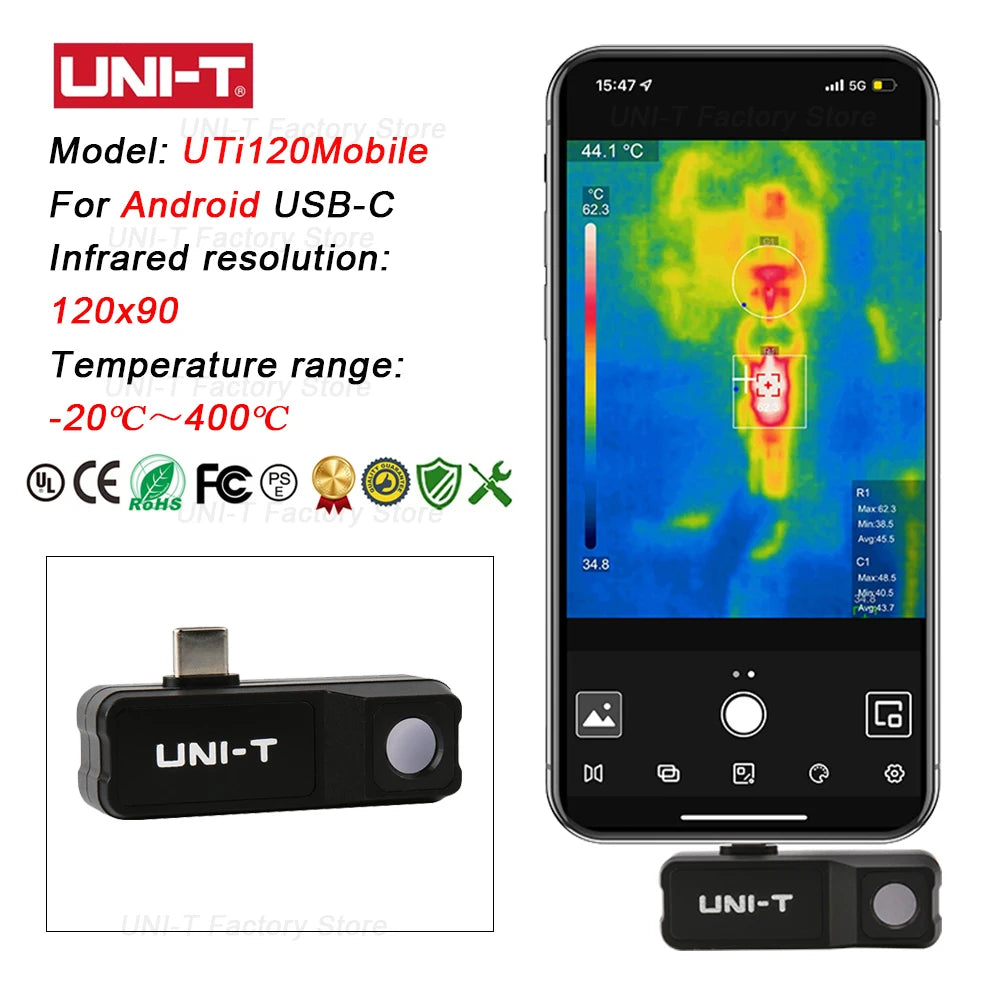

• For affordable Android inspection: choose UTi120Mobile with 120 × 90 resolution.

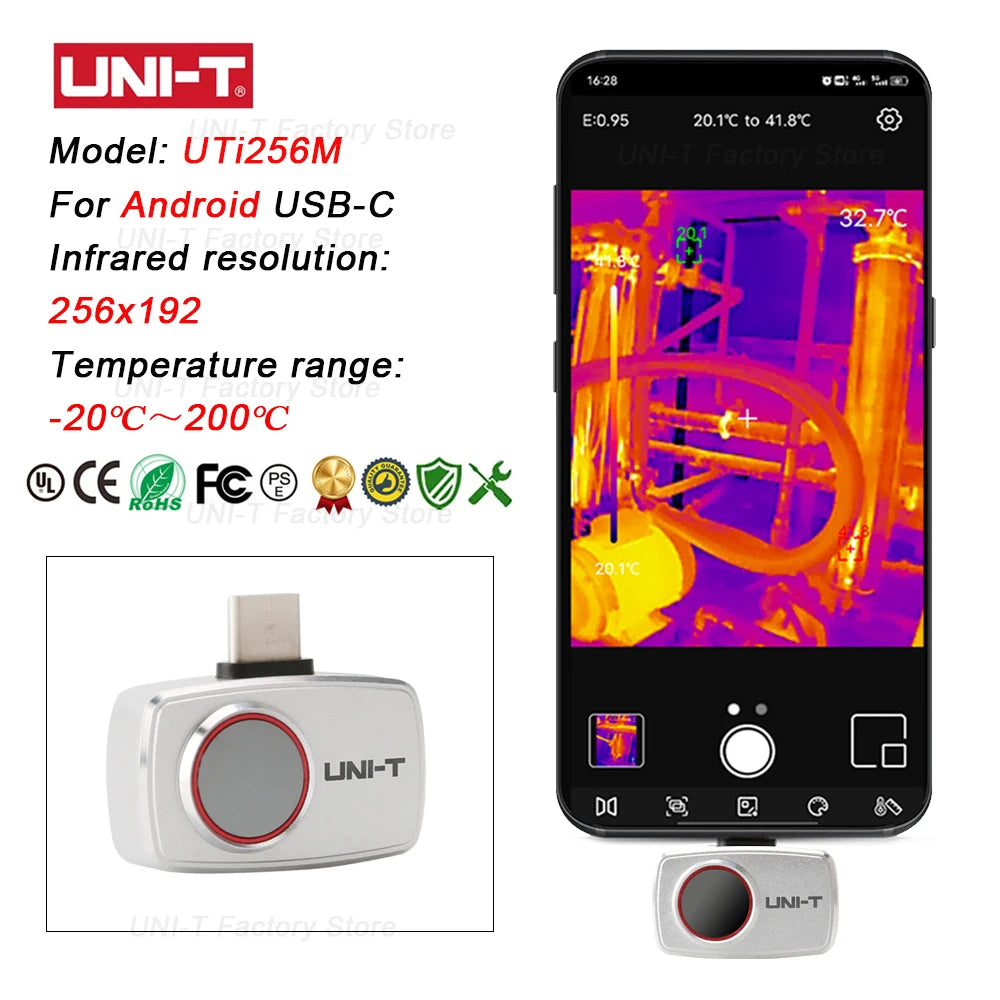

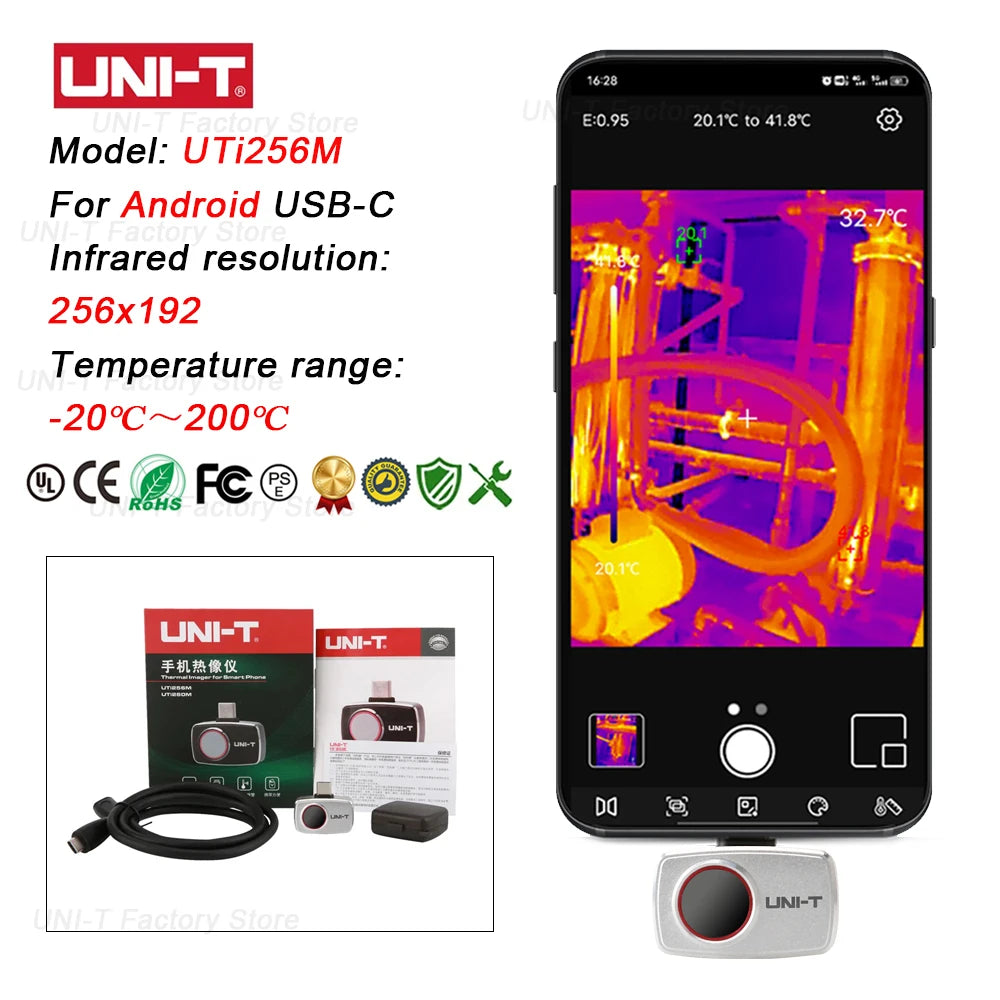

• For detailed Android imaging at moderate temperatures: choose UTi256M.

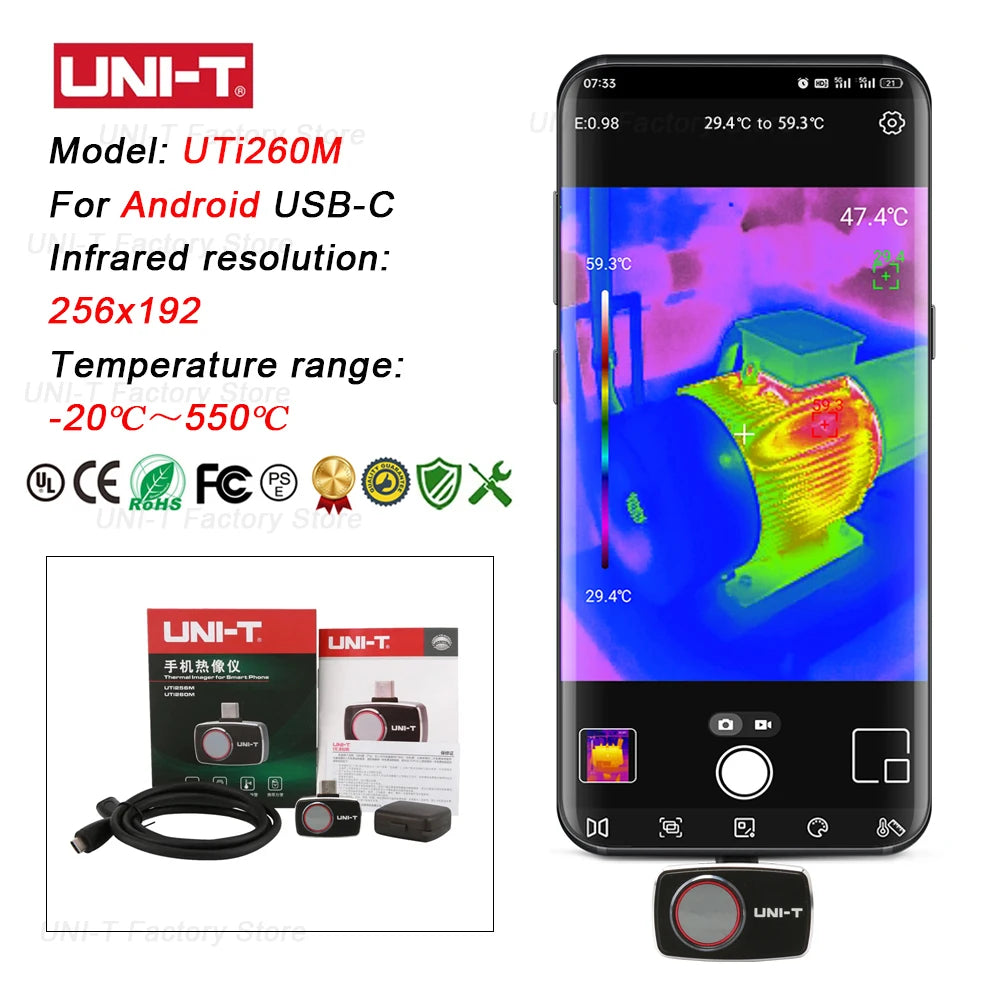

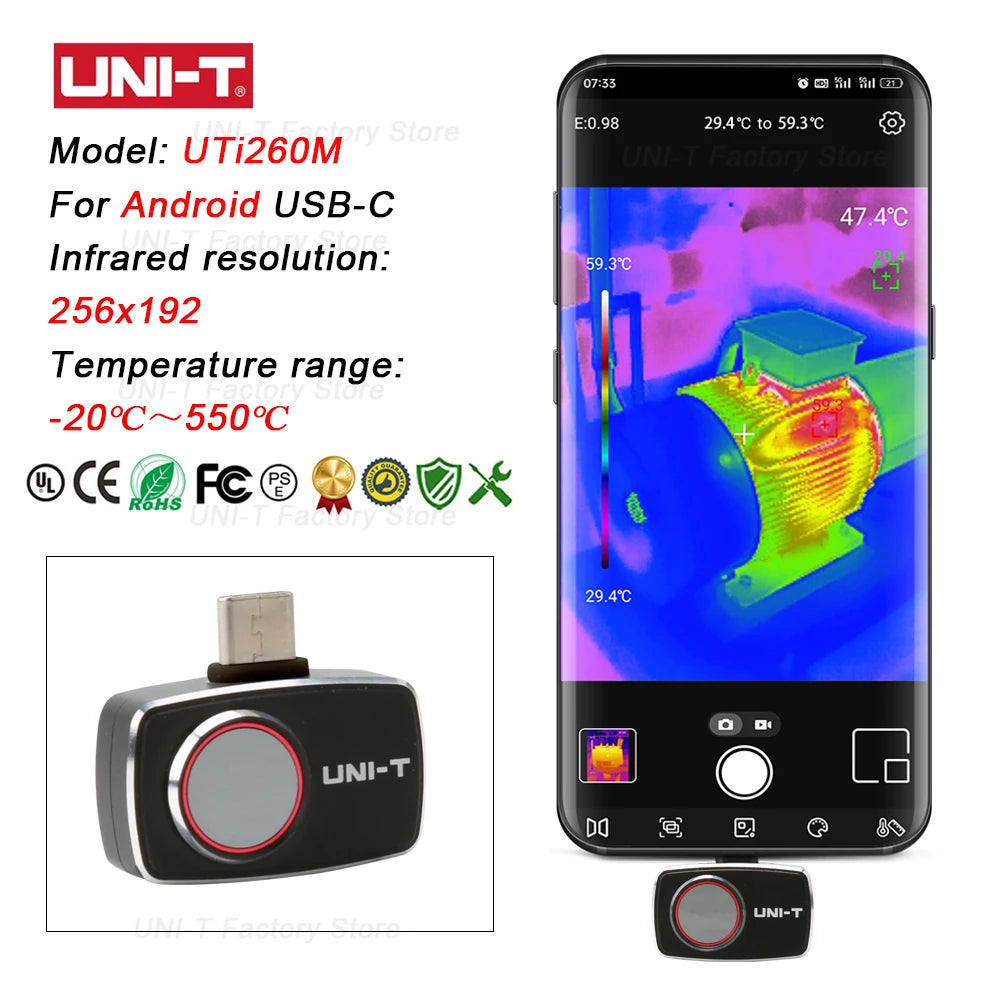

• For the widest listed temperature range: choose UTi260M, rated up to 550°C.

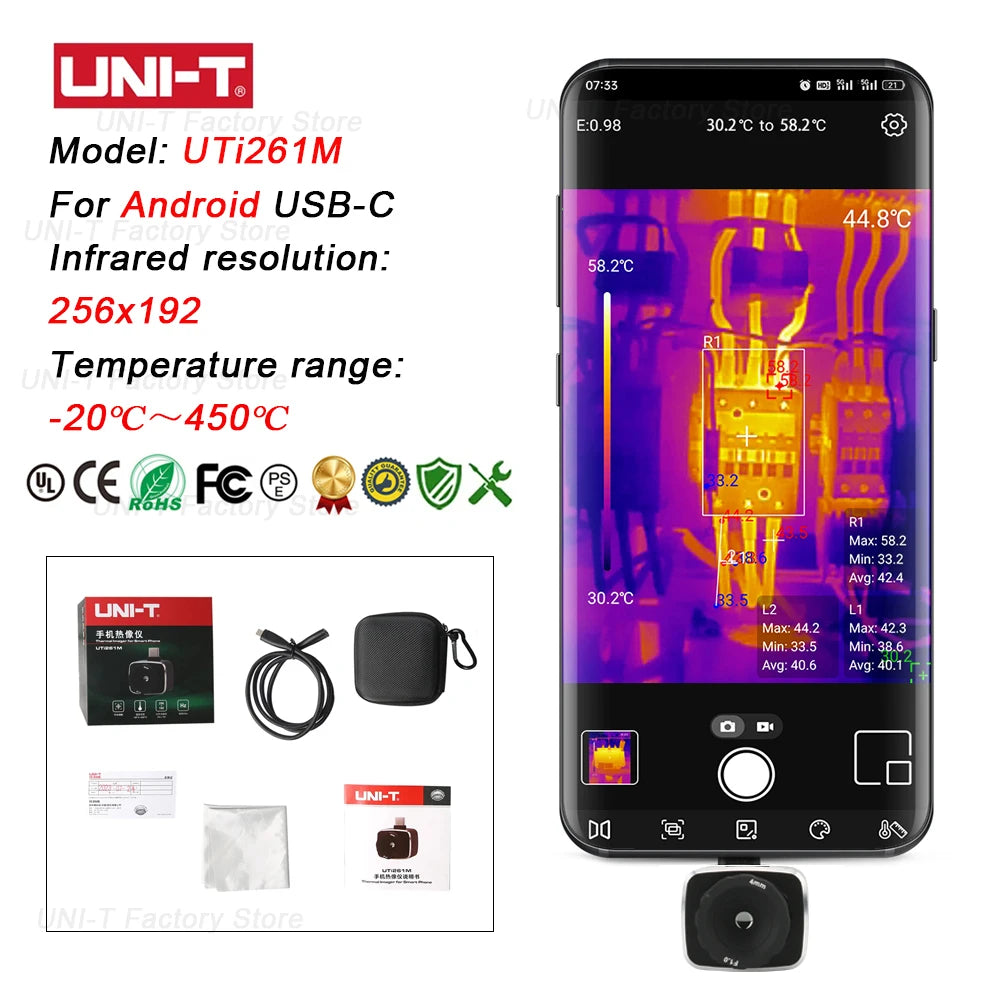

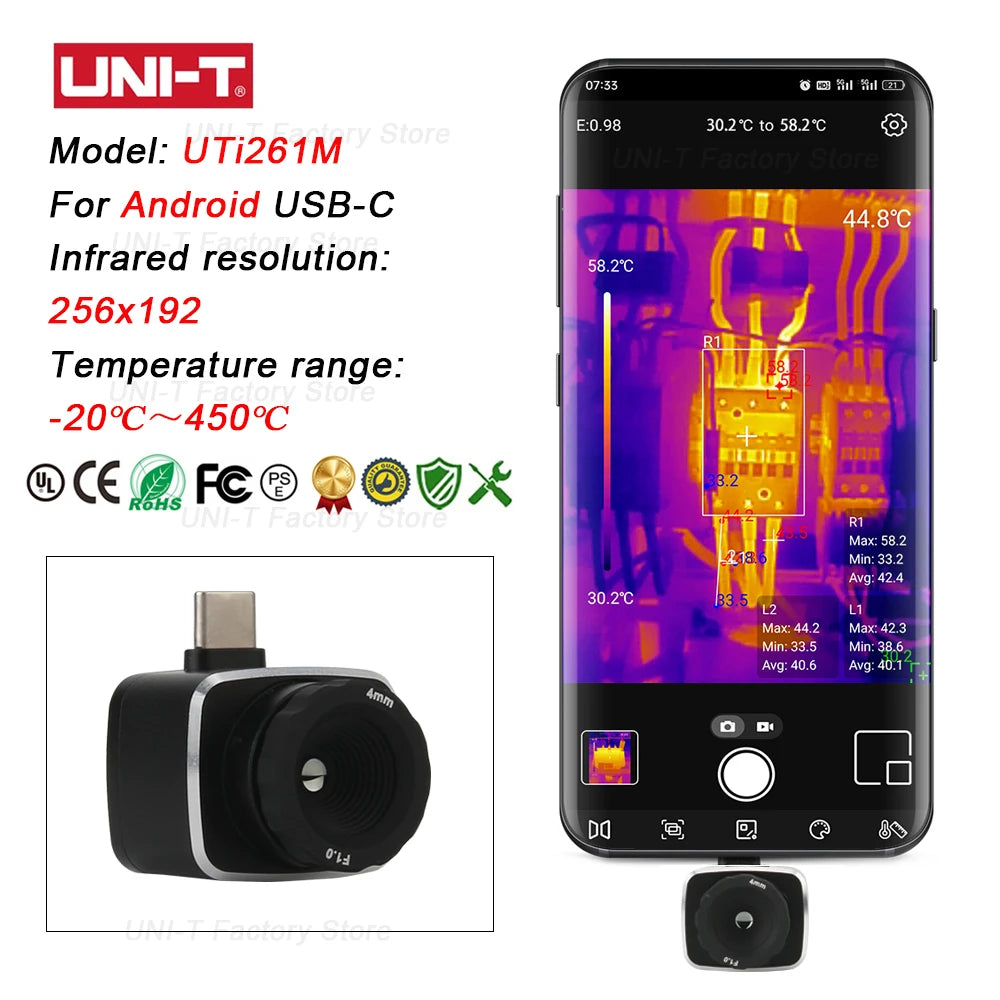

• For manual focus and a narrower field of view: choose UTi261M.

Recommended applications

• Electrical panels, wiring, connectors and overloaded components

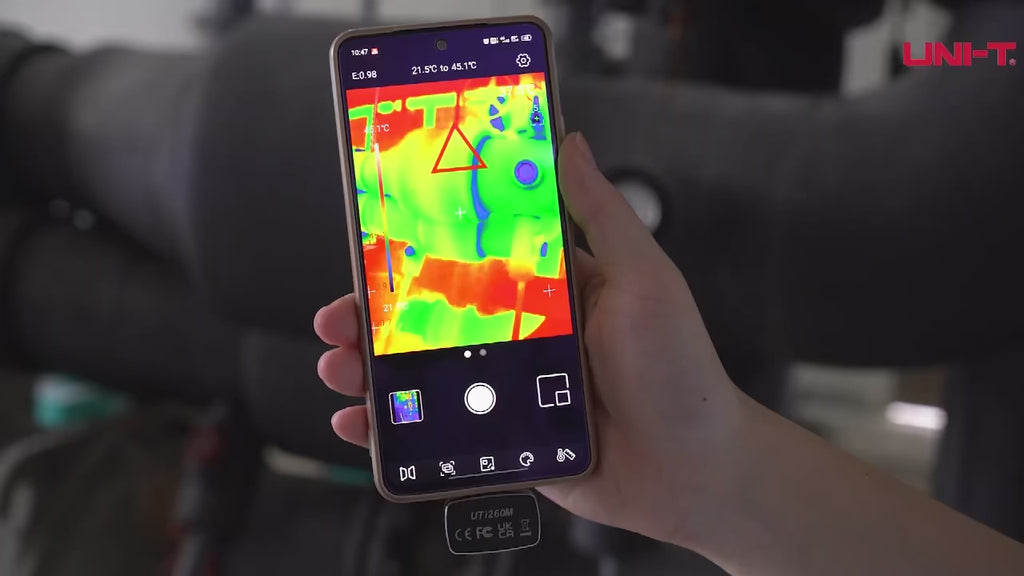

• HVAC systems, radiators, ducts and temperature distribution checks
• Automotive electrical and mechanical inspection
• Building insulation, air leakage and moisture-pattern investigation
• Machinery maintenance and preventive inspection
• Electronics troubleshooting where the selected resolution and focus are appropriate

Typical package contents

• 1 × selected UNI-T UTi mobile thermal camera
• 1 × extension cable
• 1 × software download guide
• 1 × user manual
• 1 × certificate/document card
• 1 × protective storage box

Packaging and included documentation can vary by production batch. Check the selected variant and current package images before ordering.

Measurement and safety notes

• Thermal readings depend on emissivity, reflections, distance, target size and environmental conditions.
• Critical readings should be confirmed with an appropriate calibrated contact instrument.
• UTi260M and UTi261M list a 20°C–50°C human-body measurement mode, but these products are not medical diagnostic devices.
• Do not use a mobile thermal camera for safety-critical decisions without appropriate verification.

Product image details

Review the app display modes, 25 Hz frame rate, color palettes, capture tools and temperature alarm functions.

Frequently asked questions

Which UNI-T UTi model works with Android?

UTi120Mobile, UTi256M, UTi260M and UTi261M are the Android variants listed on this page. Confirm the connector, Android version and compatible app before ordering.

Which model works with iPhone or iOS?

UTi120MS is the listed iPhone/iOS version. Do not select an Android model solely because its plug looks similar to your iPhone port.

Which models provide 256 × 192 thermal resolution?

UTi256M, UTi260M and UTi261M provide 256 × 192 infrared resolution. UTi120Mobile and UTi120MS use 120 × 90 resolution.

Which model measures the highest temperature?

UTi260M has the widest listed range at -20°C to 550°C. UTi261M is listed to 450°C, the 120-series models to 400°C, and UTi256M to 200°C.

Can the camera record photos and videos?

The compatible mobile app supports thermal image and video capture. Available functions can vary by model, phone and app version.

Why can readings differ from the actual surface temperature?

Infrared measurement is affected by emissivity, reflective surfaces, viewing distance, target size and ambient conditions. Adjust emissivity for the target material and confirm critical readings separately.

Where can I download the user manual?

Use the verified PDF download button in the Product Manual & Technical Documents section on this page. For compatibility assistance, contact support@instrunexa.com with your phone model and selected UTi model.

Downloads & documentation

UNI-T UTi mobile thermal camera user manual (PDF): Use the verified PDF download button in the Product Manual & Technical Documents section on this page.
