KWS USB-C Power Meter | 4–30V, 12A Charger Tester

Product overview

The KWS USB-C Power Meter is a compact inline tester for checking charging voltage, current, power, accumulated capacity, energy, and elapsed time. Choose the display and data layout that fits your work: the compact OLED KWS-2301C, the larger TFT KWS-2302C, or the expanded-display KWS-2303C. It is useful for checking USB-C chargers, cables, power banks, phones, tablets, and small DC test setups within the listed range. Bidirectional current indication helps show power-flow direction, while on-device pages keep key readings visible without an app. The meter reports real-time electrical data; it does not increase charging speed or replace a calibrated laboratory instrument.

Key Features

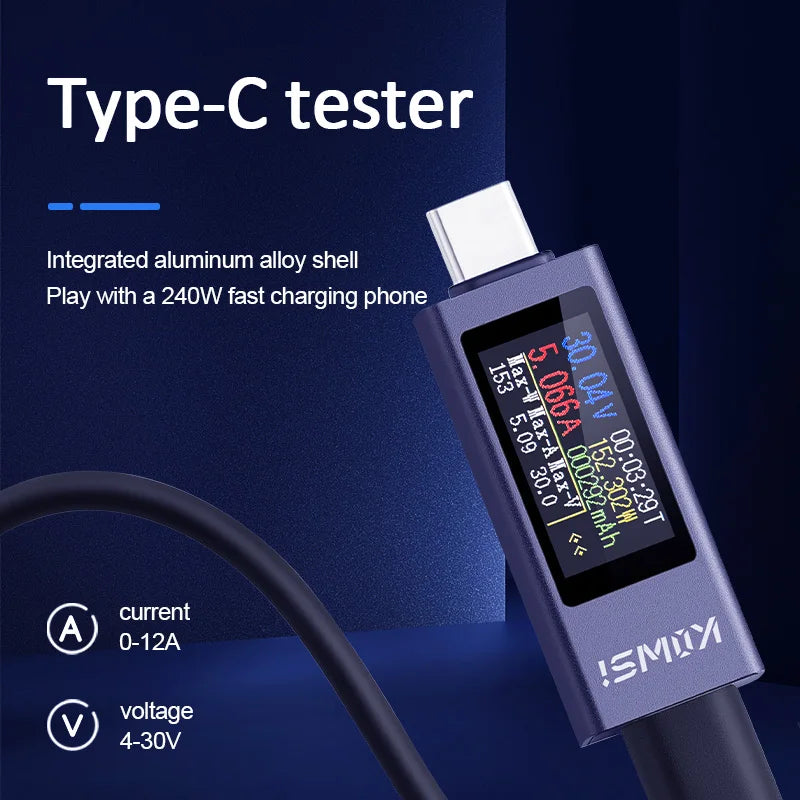

• Measures 4–30 V DC, up to 12 A, and up to 360 W within the supplier-stated range.
• Displays voltage, current, power, capacity, energy, and elapsed time.

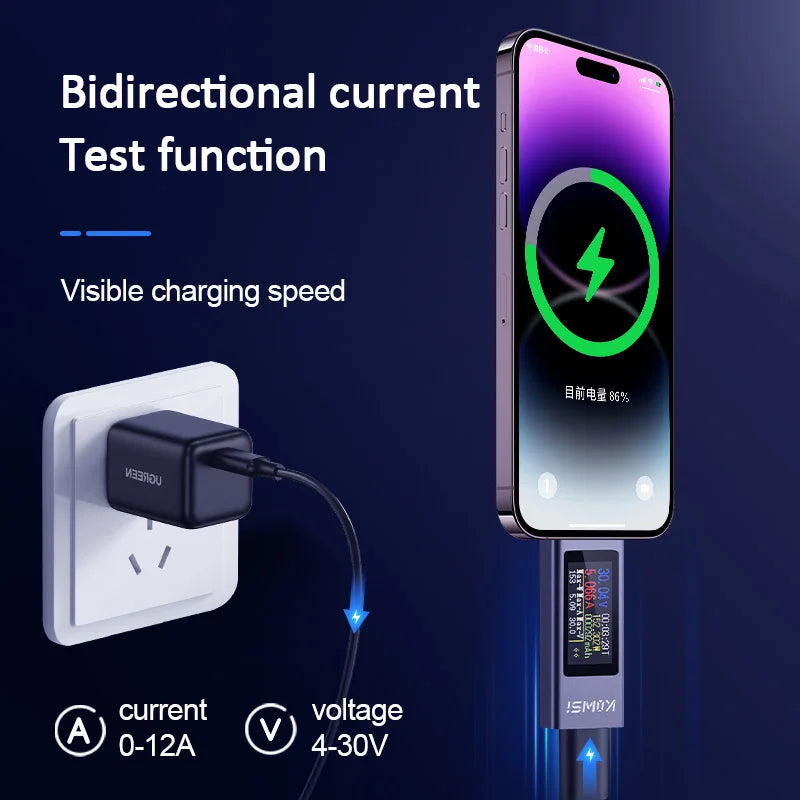

• Shows bidirectional current direction for compatible source-and-load arrangements.
• Records peak voltage, current, and power values on supported models.

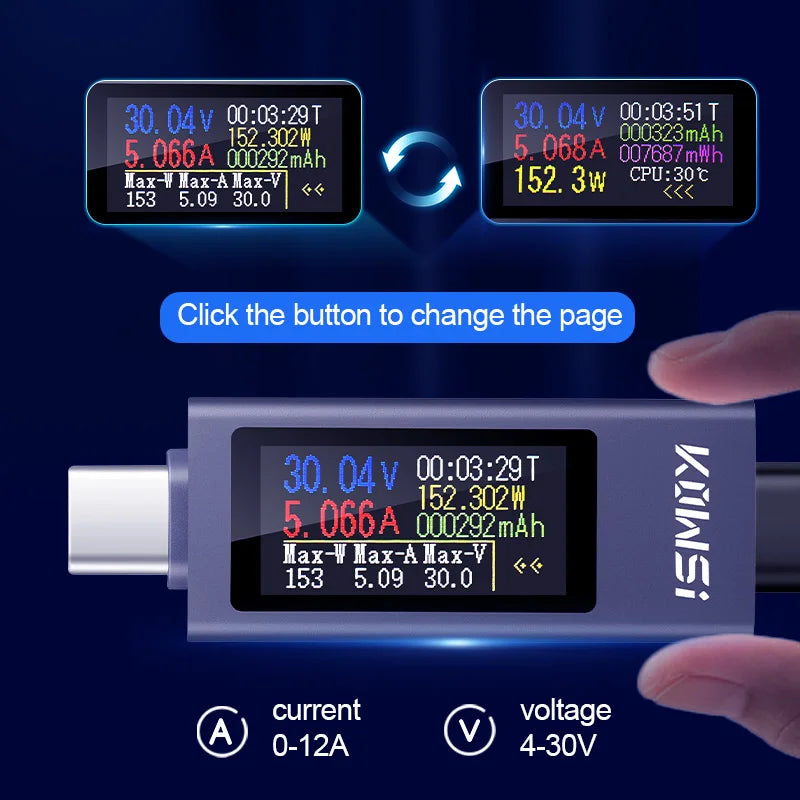

• Button-controlled pages and reversible display orientation.
• No phone app or separate battery required.

Best For

• Comparing USB-C chargers and cables under a real load

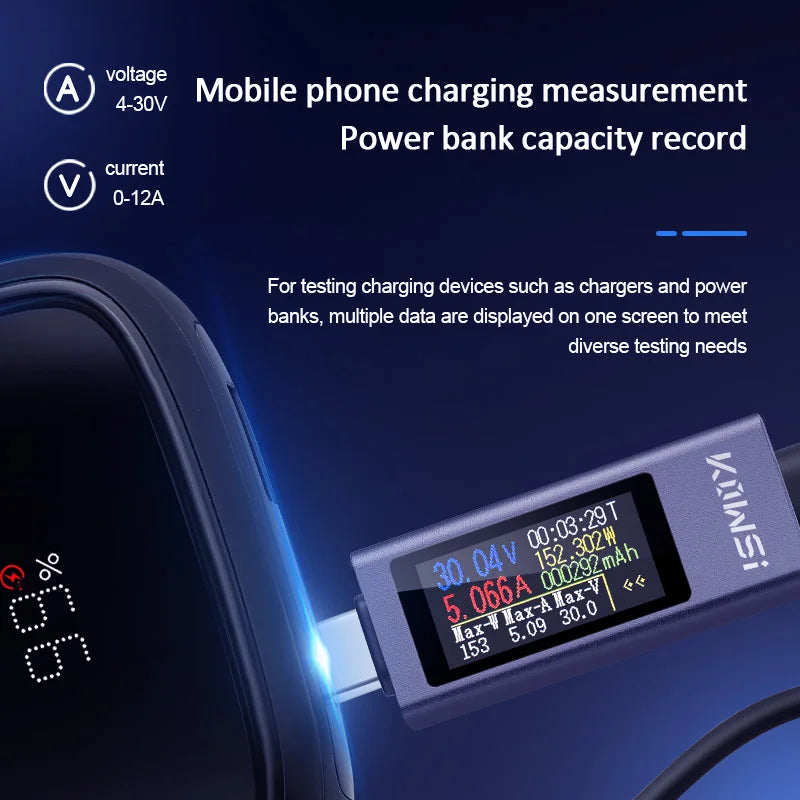

• Monitoring phone, tablet, and power-bank charging sessions
• Checking real-time wattage and accumulated charge
• Electronics benches, repair kits, and field troubleshooting

Technical Specifications

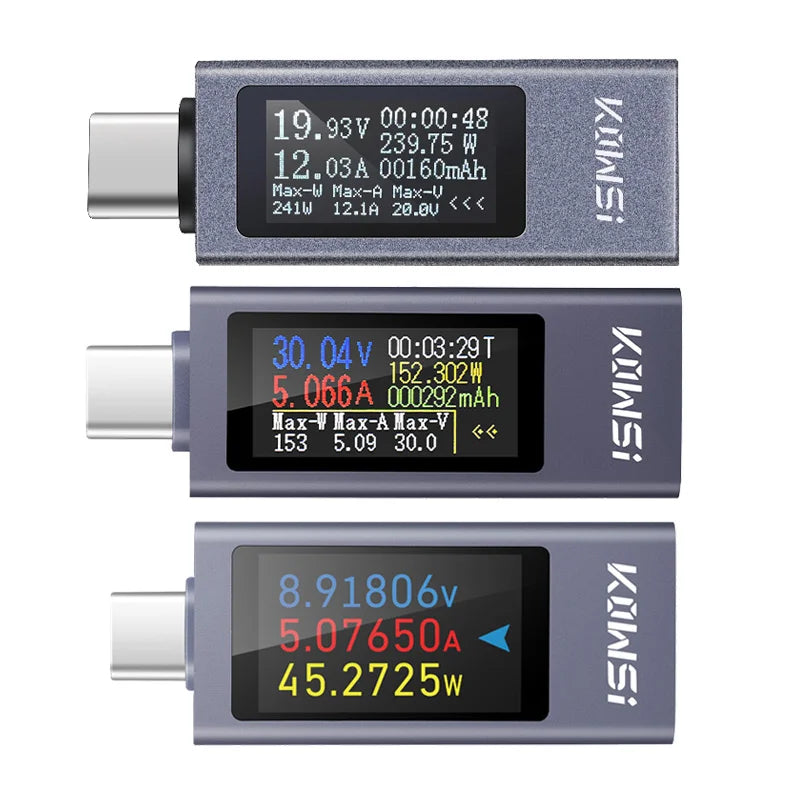

Model Guide

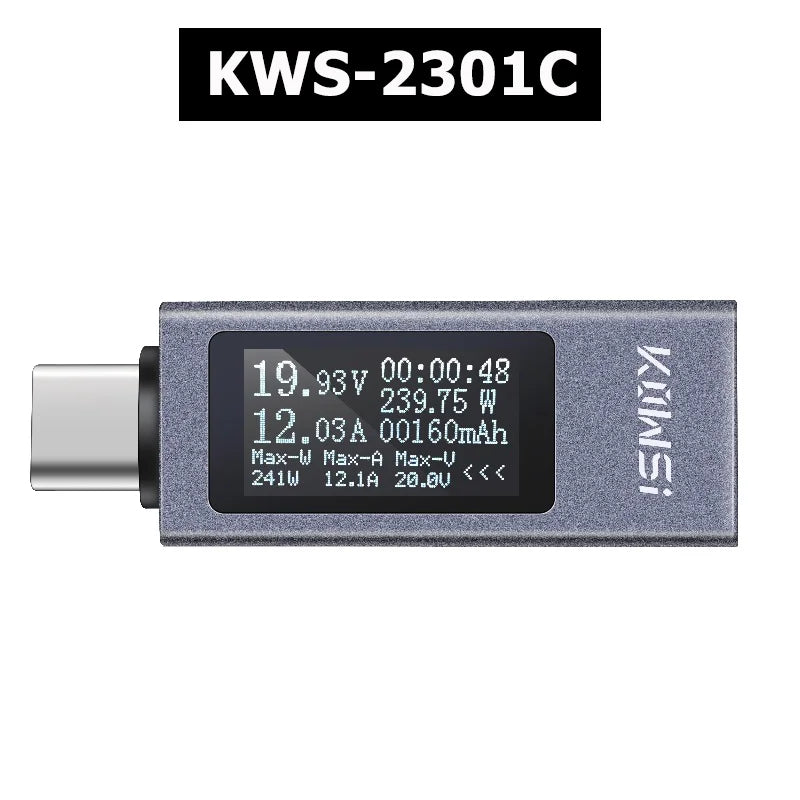

• KWS-2301C: smallest body with monochrome OLED and two information pages; the supplied manual covers this model.

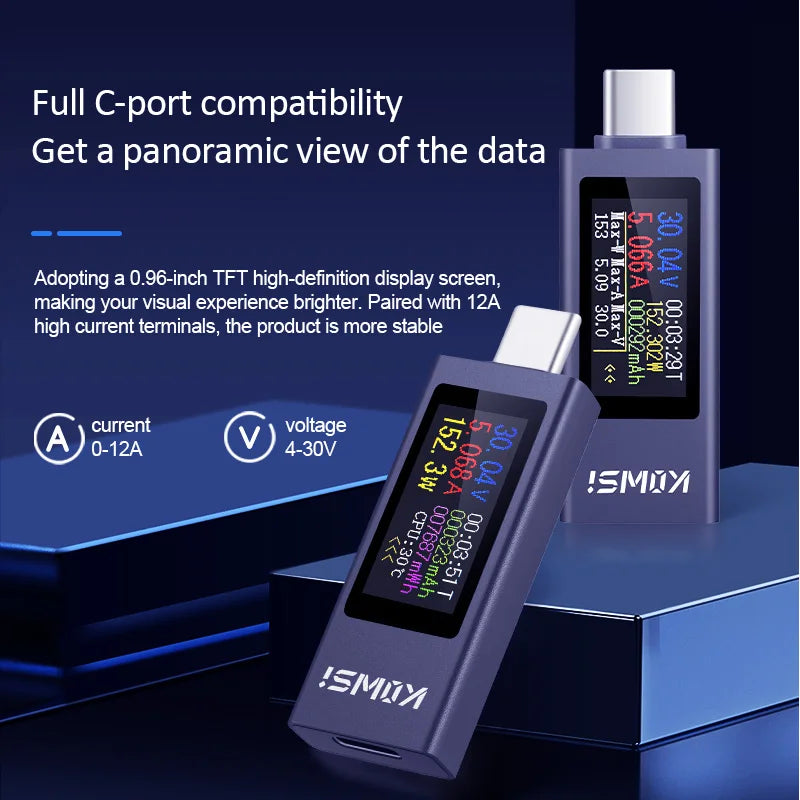

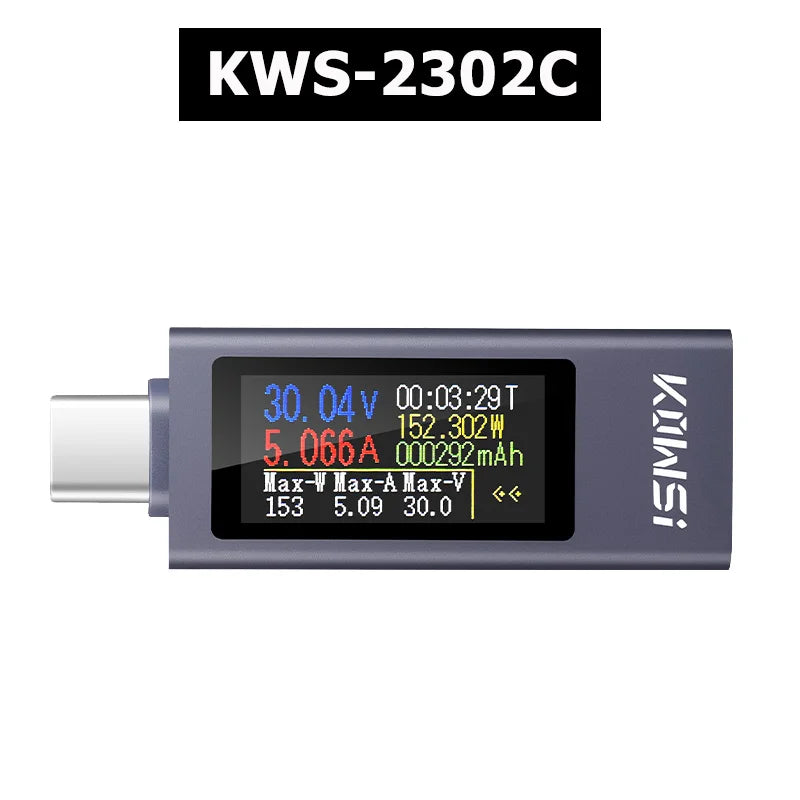

• KWS-2302C: larger color TFT with two pages, peak-value display, and power-off data retention per supplier documentation.

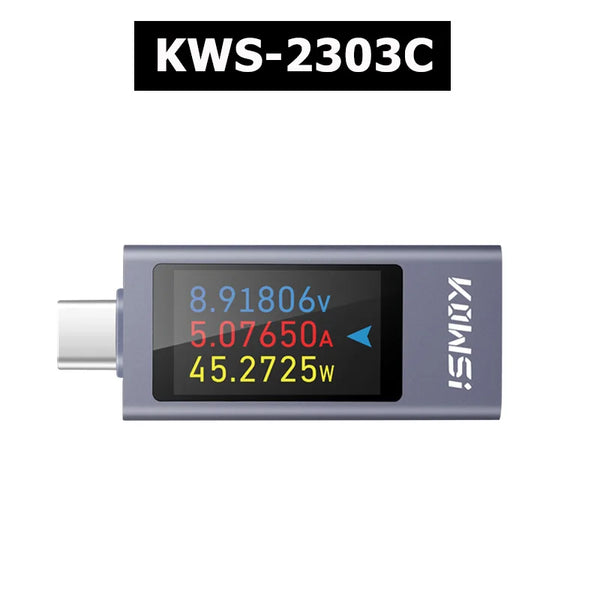

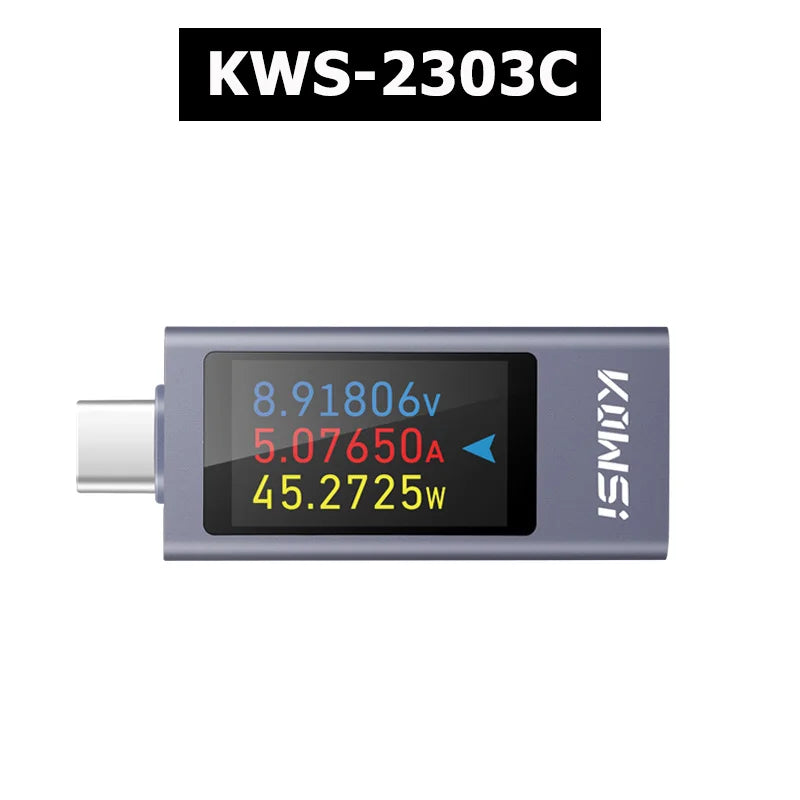

• KWS-2303C: largest color TFT with three display pages and expanded supplier-listed counters.

Compatibility

Designed for USB-C source-and-load connections operating within 4–30 V DC. Some USB-C source ports remain unpowered until a compatible load triggers charging; in that case the screen may stay off until a device is connected. The meter displays power negotiated by the connected equipment but does not negotiate, create, or increase charging protocols.

What's Included

• 1 × KWS USB-C power meter in the selected model
• 1 × printed instruction manual

Important Limitations

• The 12 A and 360 W values are maximum measurement-range claims, not a guarantee of continuous operation in every cable, connector, or thermal condition.
• This is not a USB-PD protocol analyzer and does not identify individual PD profiles or data-transfer performance.
• No measurement-accuracy specification or calibration certificate was supplied.
• Do not use with AC mains, outside 4–30 V DC, in wet locations, or with damaged/loose connectors.

Frequently Asked Questions

Why is the screen blank when I connect only the charger?

Some USB-C source ports do not output voltage until a compatible load requests power. Connect the load device so the charging session can start.

Why is the displayed wattage lower than the charger label?

The charger label shows its maximum capability. The meter shows the voltage and current actually requested by the connected device at that moment.

Why does the meter show about 0.01–0.02 A with no load?

A small offset can occur with bidirectional measurement. For KWS-2301C, disconnect the load, hold the rear button, connect the meter to a 5 V source on the female side, then release when “CAL” appears to start zero calibration.

Can it test cable quality?

It can help compare voltage drop and delivered power under the same real load, but it does not certify USB data speed or protocol compliance.

User Manual & Downloads

Download KWS-2301C USB-C Power Meter User Manual (PDF)

Manual coverage: KWS-2301C. Languages: English and Chinese. Revision number was not stated in the source file.
