AMPBANK M256 256 × 192 USB-C Thermal Camera
Availability:
In stock
Product type:
Thermal Imaging Cameras
$197.99
Couldn't load pickup availability
AMPBANK M256 256 × 192 USB-C Thermal Camera
Regular price
$197.99
Regular price
Sale price
$197.99
Unit price
per
AMPBANK M256 256 × 192 USB-C Thermal Camera
$197.99
Before you order
Delivery, returns and product support
Review the practical details below, then confirm the selected variant and compatibility requirements shown on this page.
30-day returns
Request a return within 30 days of delivery. Contact us before sending an item so we can provide the correct return instructions.
View return policyManuals & documents
Model-specific PDF manuals appear on the product page when available. Our downloads center explains how to request a missing document.
Visit downloads centerConfirm product fit
For critical dimensions, device compatibility or regulated work, verify the selected variant and application before ordering.
Contact product supportDelivery estimates begin after dispatch and are not guarantees. Products may ship from third-party fulfillment partners and separate items may arrive in different packages.
Verified product information
Details for AMPBANK M256 256 × 192 USB-C Thermal Camera
Product overview

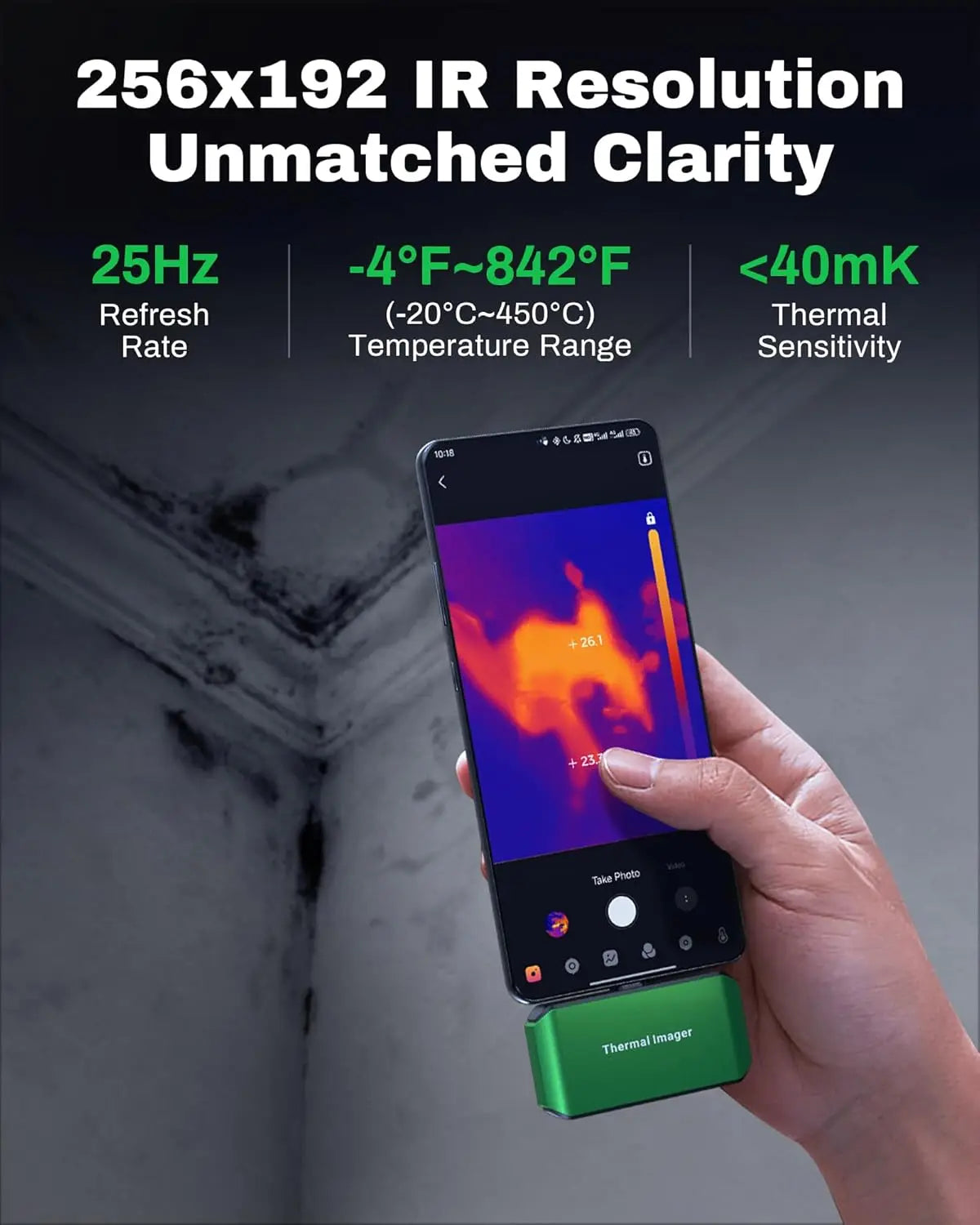

Turn a compatible Android phone or Windows computer into a compact thermal inspection system. The AMPBANK M256 uses a 256 × 192 infrared sensor for HVAC, electrical, automotive, insulation, moisture-pattern, and equipment inspections.

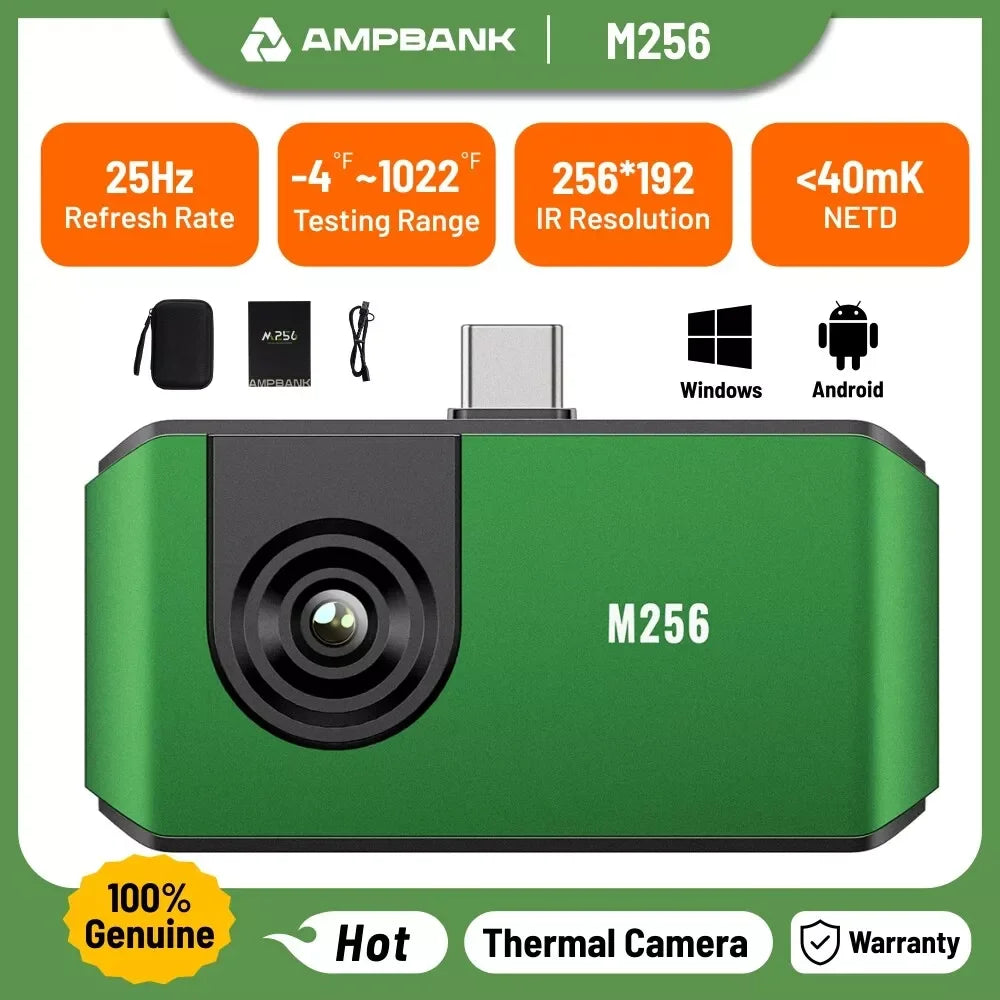

Core specifications
| Infrared resolution | 256 × 192 |
|---|---|
| Temperature range | -20–450°C (-4–842°F) |
| Stated accuracy | ±2°C or ±2%, whichever is greater |
| Thermal sensitivity | 40 mK |
| Measurement resolution | 0.1°C |
| Recommended distance | Within 5 m |
| Power consumption | Less than 350 mW |

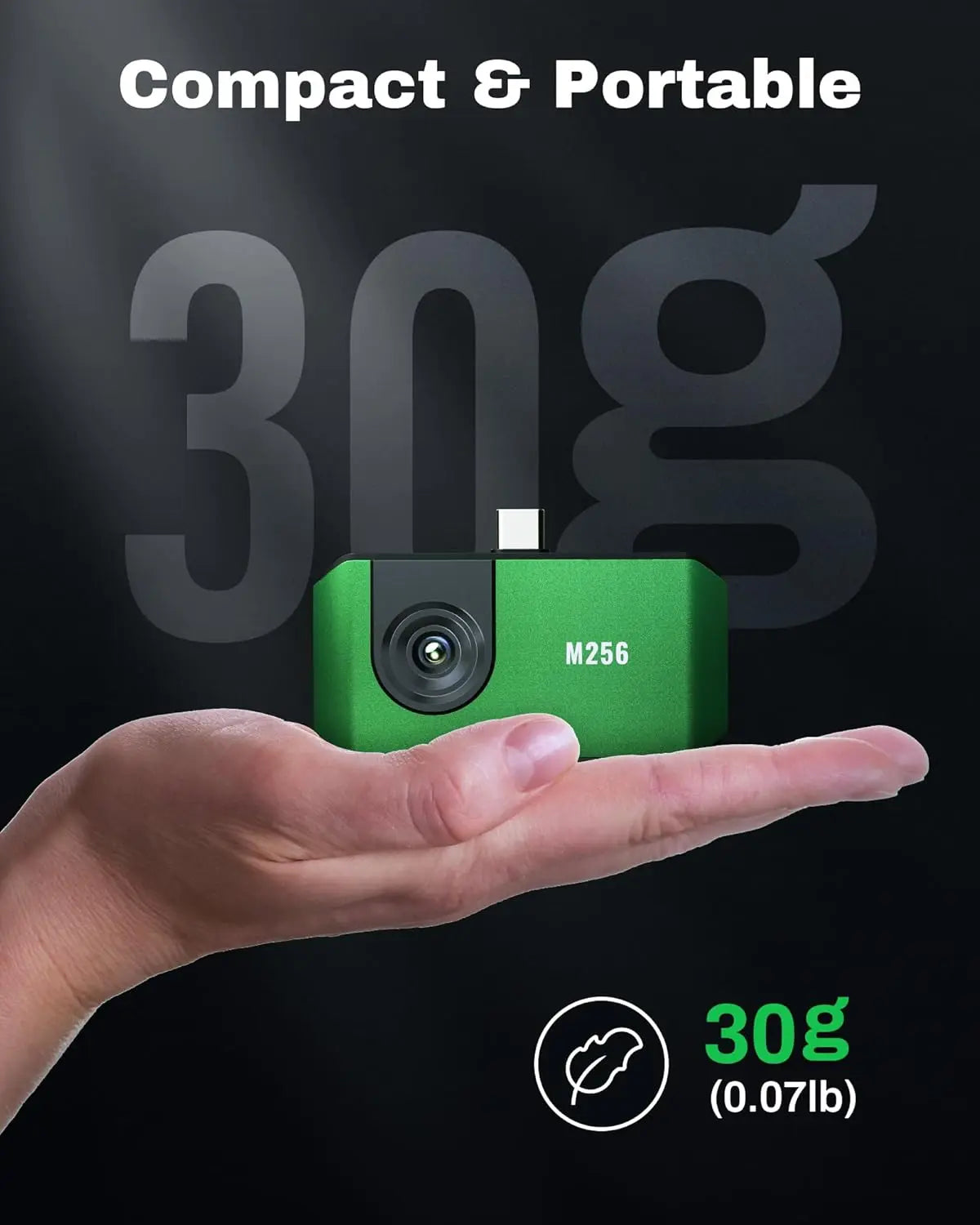

| Size and weight | 71 × 42 × 14 mm; approximately 30 g |

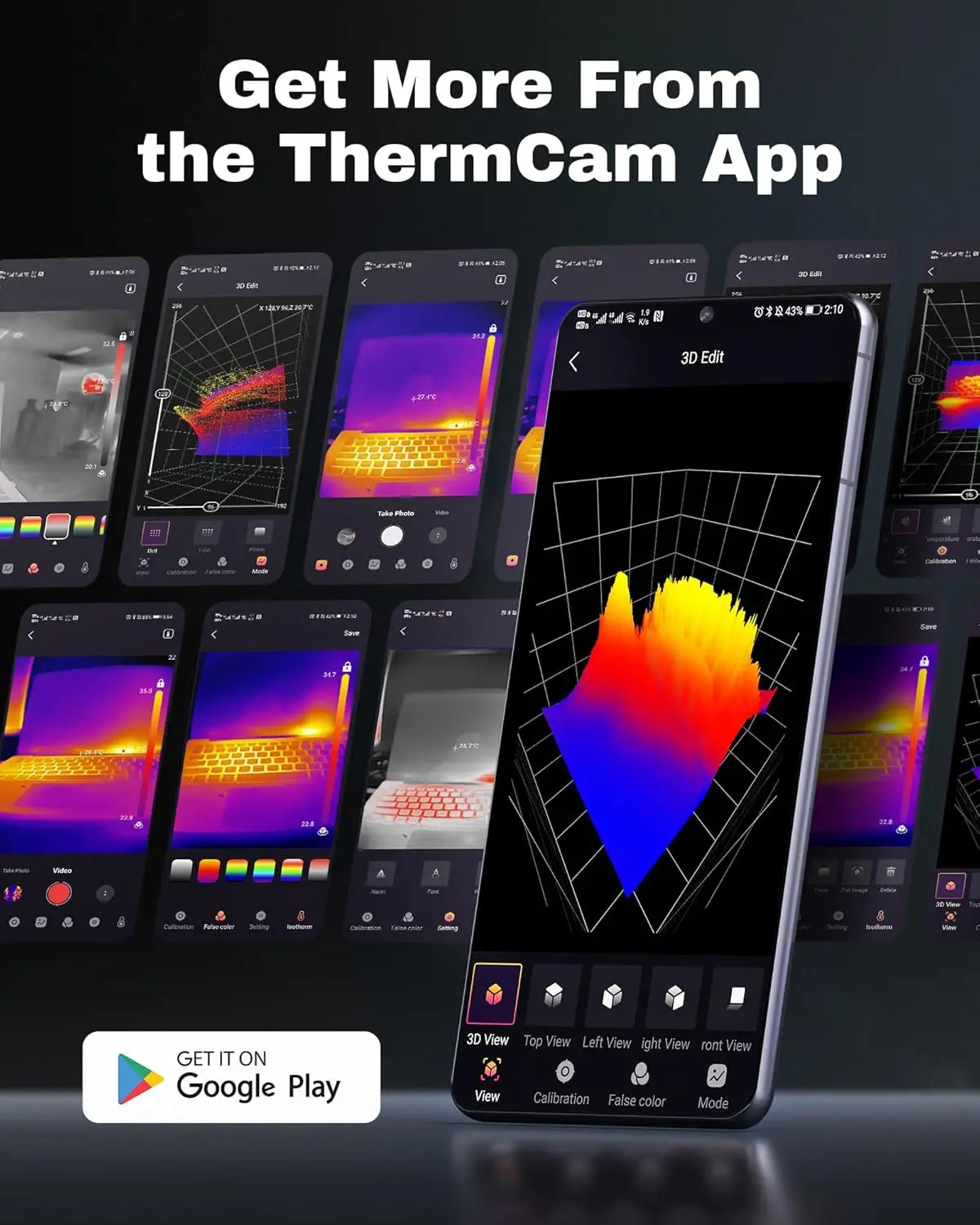

Analysis features

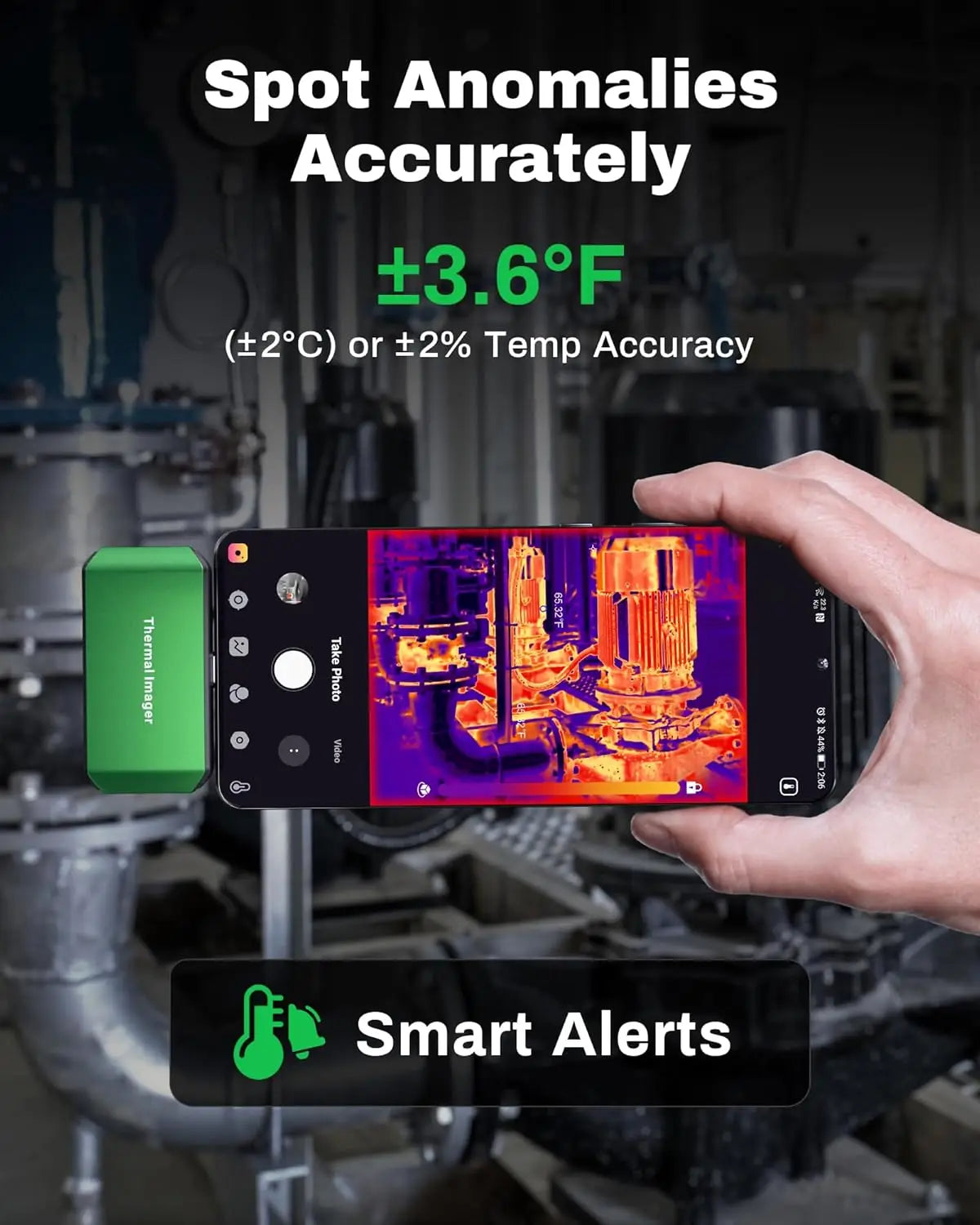

- Point, line, and area temperature analysis
- High, low, and average temperature tracking
- Nine mobile color palettes
- Image rotation, contrast and sharpness controls
- Waveform graph for temperature changes

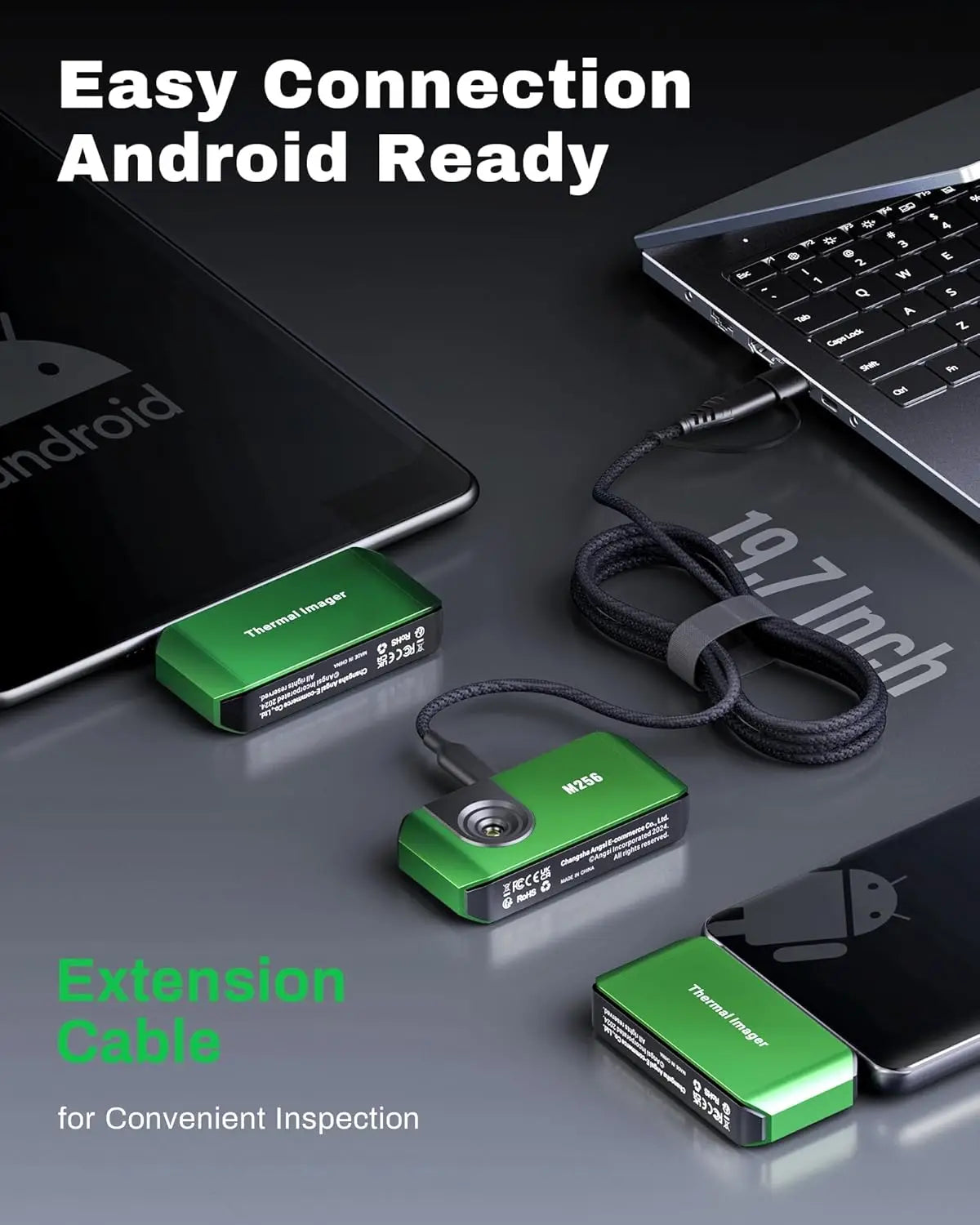

Compatibility
Designed for Android phones and tablets with USB-C and OTG support. Windows use requires the compatible desktop application. Check port type, OTG support, and operating-system compatibility before ordering.
In the box
M256 thermal camera, 50 cm multifunction adapter cable, carrying case, cleaning cloth, quick guide, and package box.
Frequently asked questions
How do I choose the correct variant?
Confirm connector, operating system, app and detector range.
What are the main use limitations?
Readings depend on emissivity and reflections; not a medical diagnostic device.
Where can I download the manual?
Use the verified PDF download button in the Product Manual & Technical Documents section on this page.
Downloads & documentation
Electronic user manual: Use the verified PDF download button in the Product Manual & Technical Documents section on this page.
Technical specifications
Typical applications
- Electrical, HVAC, building and equipment diagnostics
What's in the box
- Package contents vary by selected variant; refer to the option and product images.
Compatibility and requirements
Limitations and product fit
Safety and handling
Frequently asked questions
Product visuals
A closer look at AMPBANK M256 256 × 192 USB-C Thermal Camera
Review the available product, interface, accessory and specification images before selecting a variant.
Images can illustrate more than one option. The selected variant name and written specifications on this page determine what is included.
Product manual & technical documents
Download the official electronic manual for AMPBANK M256 256 × 192 USB-C Thermal Camera. Use it for model-specific setup, operation, safety information, and reference.
