TOOLTOP T7 256 × 192 USB-C Thermal Camera for Android

Product overview

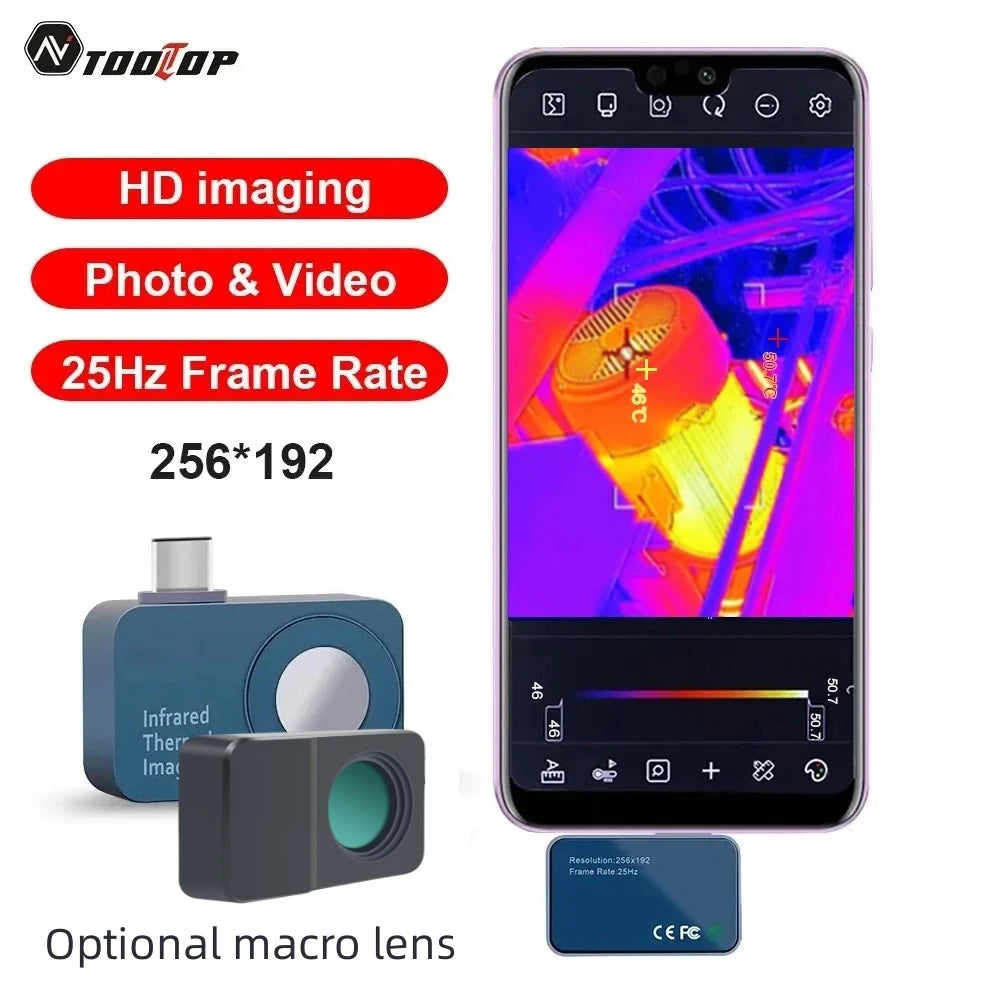

Turn a compatible Android USB-C phone into a compact thermal inspection camera. The TOOLTOP T7 combines a 256 × 192 infrared sensor, smooth 25 Hz imaging and a wide -15°C to 600°C measurement range for electrical, HVAC, automotive, electronics and building diagnostics.

Key features

• 256 × 192 thermal resolution: Provides detailed infrared imaging for locating temperature differences and problem areas.
• 25 Hz frame rate: Produces smoother real-time thermal images with reduced visual lag.
• -15°C to 600°C measurement range: Suitable for a broad range of inspection and troubleshooting tasks.

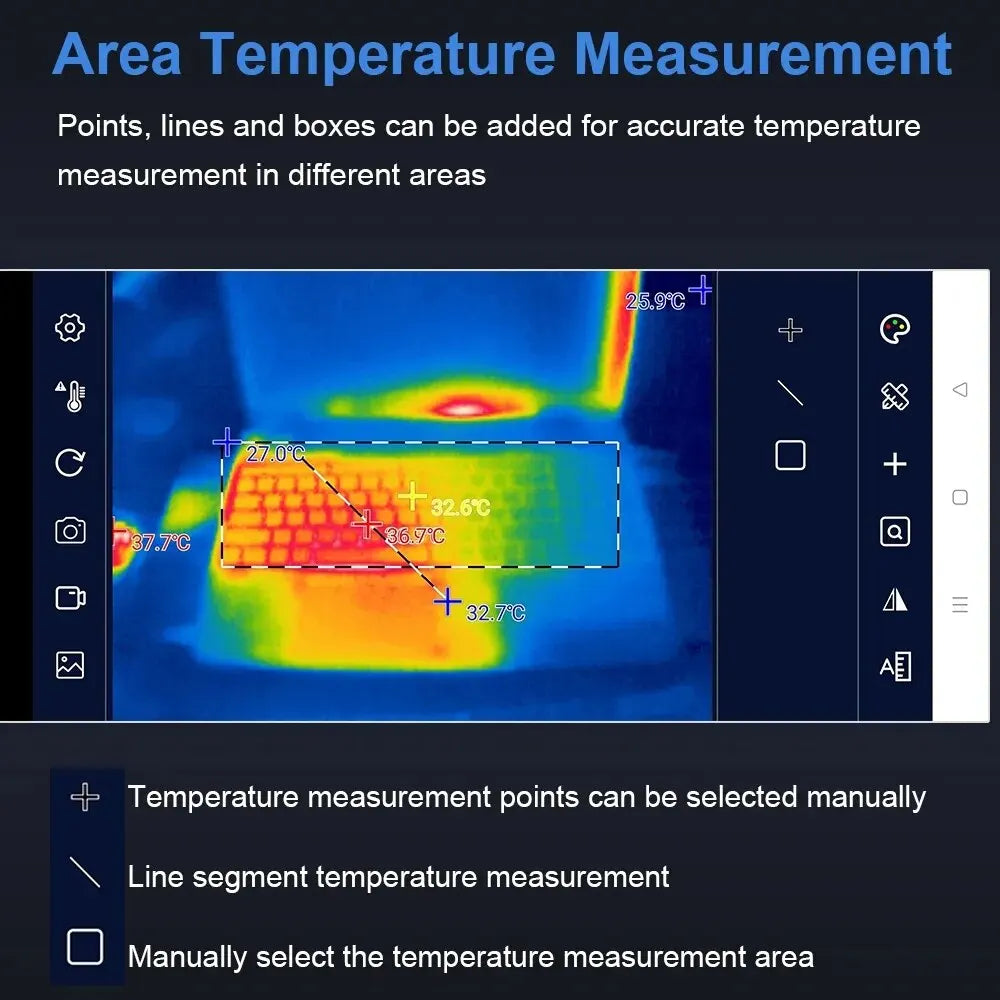

• Point, line and area measurement: Add measurement points, lines or rectangular regions through the Android app.
• Automatic temperature tracking: Supports highest, lowest and center-point temperature tracking, plus regional high/low tracking.
• High-temperature alerts: Configure alarms for selected measurement regions in the app.
• Photo and video recording: Capture and save thermal images and videos to the connected phone.

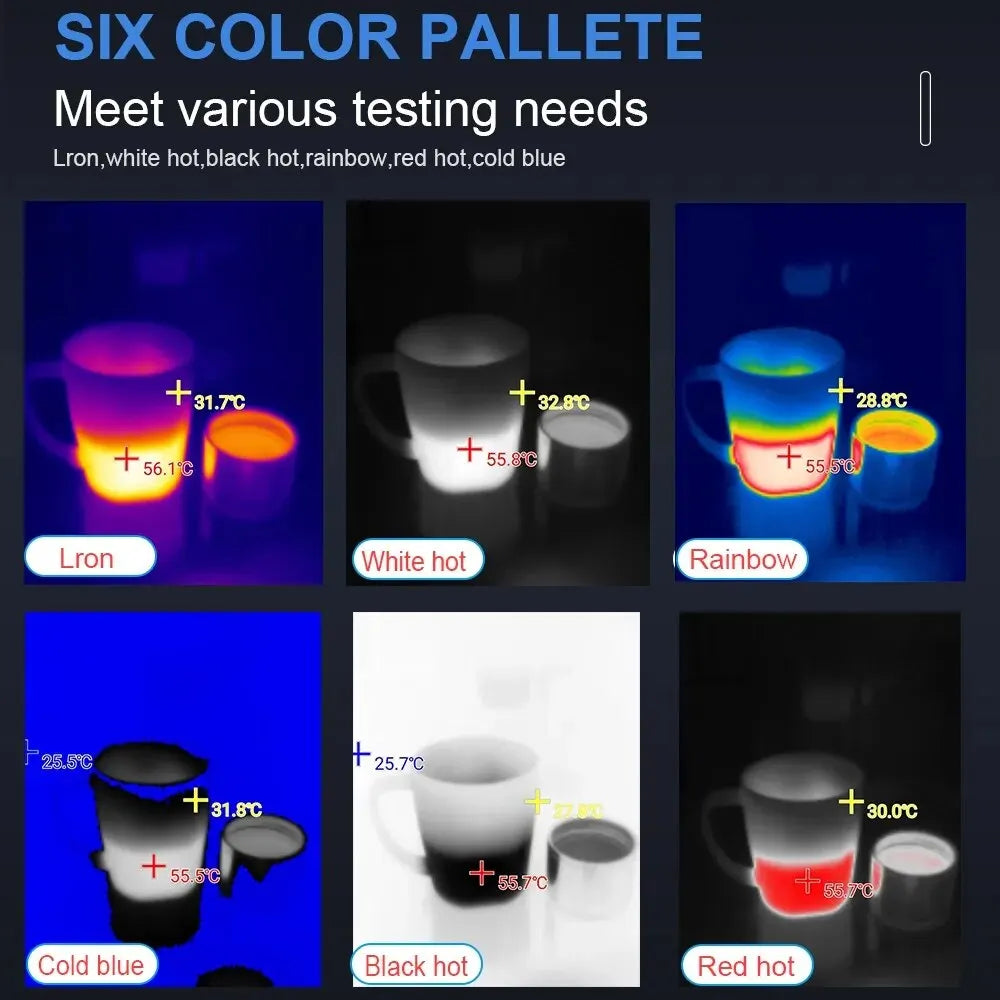

• Six color palettes: Iron, white hot, black hot, rainbow, red hot and cold blue.

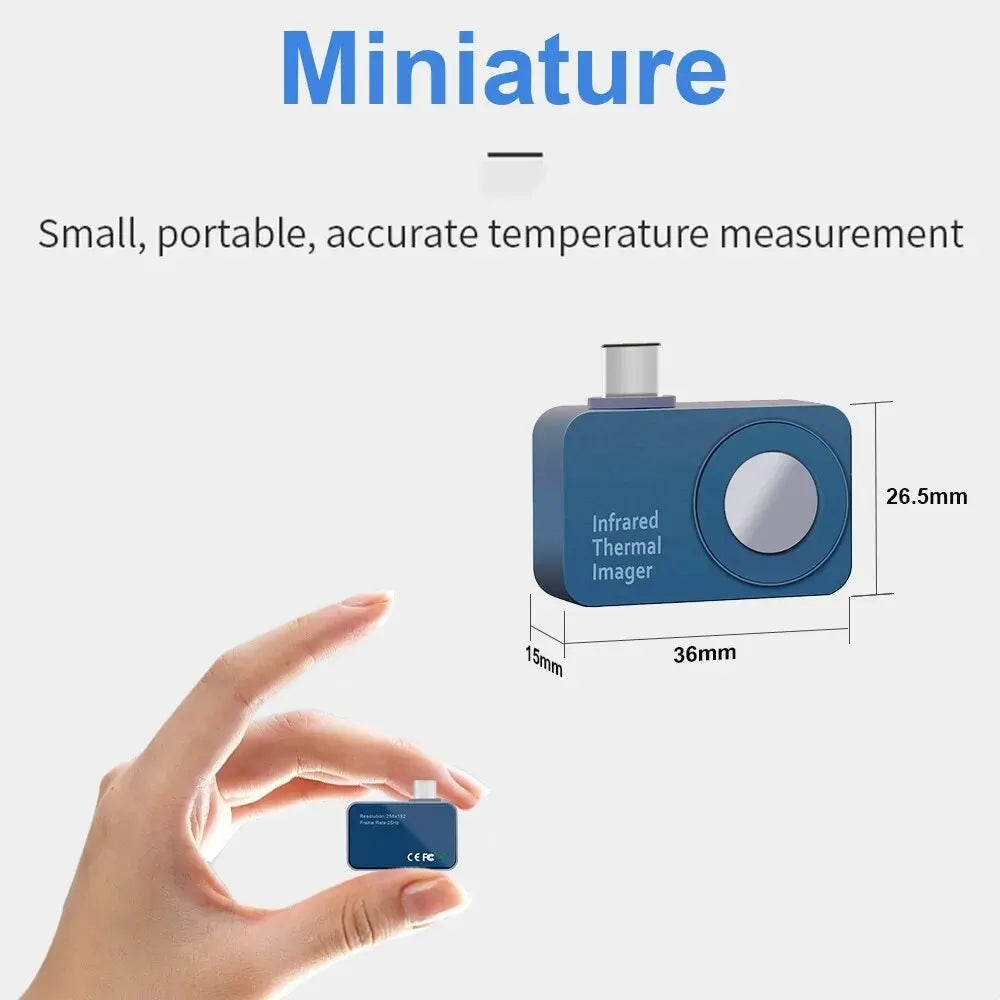

• Compact plug-in design: Approximately 40 × 25 × 14 mm and 23 g for portable field use.

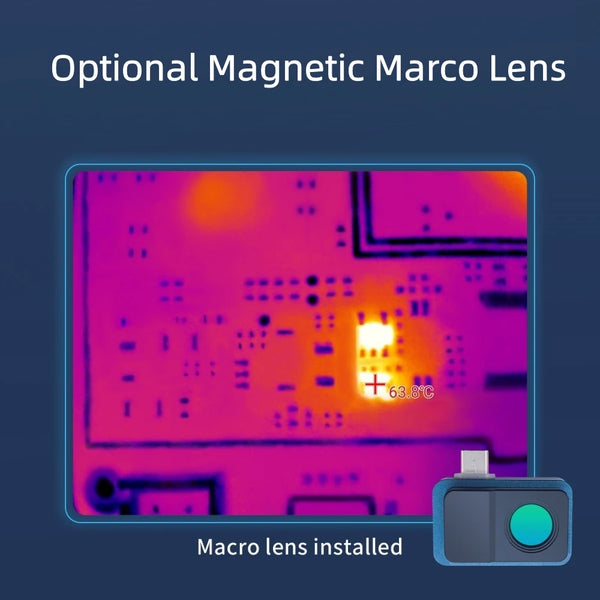

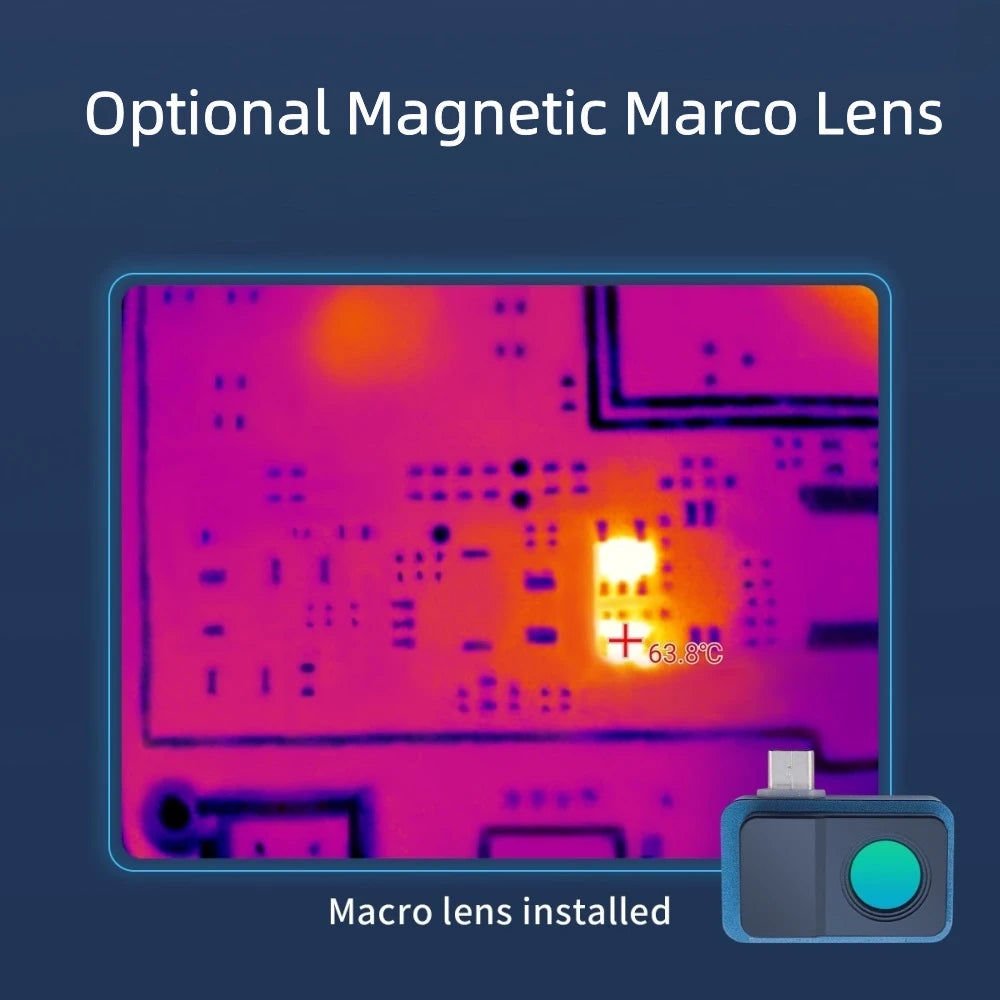

Optional magnetic macro lens

The T7 + Macro Lens variant adds a lightweight magnetic macro lens for close inspection of small electronic components. The supplier specifies an all-germanium optical element with approximately 93% transmittance and a minimum observable component size of approximately 2 × 1 mm. The macro lens is optional and is included only with the corresponding variant.

Technical specifications

Recommended applications

• Electrical panels, wiring, connectors and overloaded components
• PCB inspection and small-component diagnostics with the optional macro lens
• HVAC vents, radiators, ducts and temperature distribution checks
• Automotive electrical and mechanical troubleshooting
• Building insulation, air leakage and moisture-pattern investigation
• Preventive maintenance and general temperature comparison

Calibration behavior

The camera periodically performs an internal non-uniformity correction using a mechanical calibration shutter. During calibration, you may hear a click and the image may pause for approximately 1–3 seconds. The supplier states that this can occur at roughly 10-second intervals during operation. This is normal thermal-detector behavior and does not indicate a fault.

Measurement and safety notes

• For general temperature measurement, the supplier recommends working at approximately 1 meter when practical. Readings can change with distance, focus, target size, emissivity and reflections.
• Low thermal contrast can make edges appear blurred. A larger temperature difference between the object and background generally produces a clearer image.
• Do not use the camera in extreme heat, strong magnetic fields or other harsh environments outside the stated operating conditions.
• This product is an inspection instrument and is not intended for medical diagnosis, fever screening or safety-critical decisions.

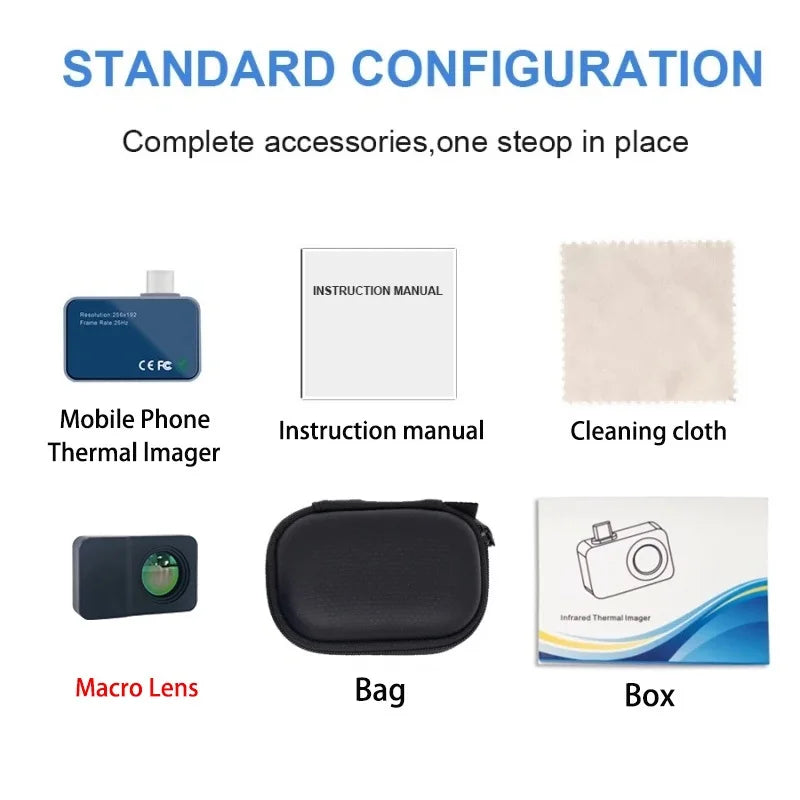

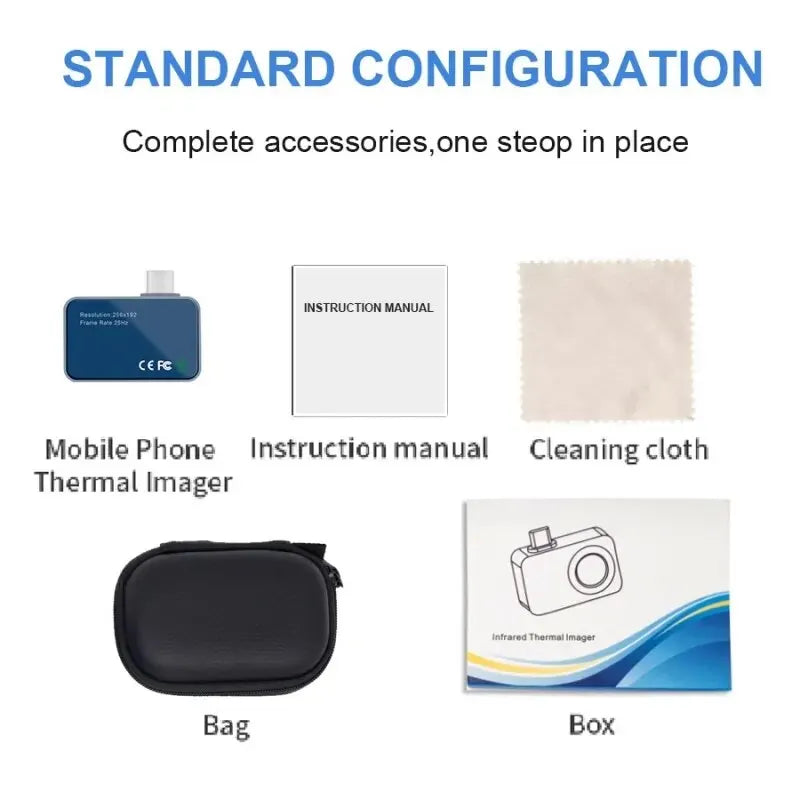

Package contents

• 1 × TOOLTOP T7 thermal imager
• 1 × English user manual
• 1 × Cleaning cloth
• 1 × Box
• 1 × Storage bag
• 1 × Magnetic macro lens — only with the T7 + Macro Lens variant

Product image details

Review the thermal resolution, measurement tools, Android USB-C connection, color palettes, frame rate and compact dimensions.

Frequently asked questions

Does the TOOLTOP T7 work with iPhone or iOS?

No. This version is designed for compatible Android USB-C phones and does not support iPhone or iOS.

What should I check if the thermal camera does not connect?

Remove any thick phone case, fully insert the USB-C connector and confirm that OTG is enabled in the phone settings. Some older Android phones require additional app support. If the issue continues, contact support with your phone model and Android version before installing software from an unverified source.

Why does the image click or freeze briefly?

The detector is performing an automatic calibration cycle. A click and a brief 1–3 second pause are normal during this process.

What is the optional macro lens for?

The magnetic macro lens is intended for closer inspection of small electronics and components. It is included only with the “T7 + Macro Lens” variant.

Why can a thermal image look blurred?

Blur can result from incorrect focus, unsuitable distance, a target that is too small, or insufficient temperature contrast between the object and its background. Adjust the viewing distance and use the macro lens for appropriate close-up applications.

Can the T7 replace a calibrated contact thermometer?

No. Thermal cameras are valuable for finding patterns and temperature differences, but readings are affected by emissivity, reflections, distance and environmental conditions. Confirm critical measurements with an appropriate calibrated instrument.

Where can I download the user manual?

Use the verified PDF download button in the Product Manual & Technical Documents section on this page. For assistance, contact support@instrunexa.com.

Downloads & documentation

TOOLTOP T7 user manual (PDF): Use the verified PDF download button in the Product Manual & Technical Documents section on this page.
