TOPDON BT100 / BT200 12V Battery Tester | 100–2000 CCA
Availability:
In stock
Product type:
Automotive Battery Tester
$142.99
Couldn't load pickup availability
TOPDON BT100 / BT200 12V Battery Tester | 100–2000 CCA
Regular price
$142.99
Regular price
Sale price
$142.99
Unit price
per
TOPDON BT100 / BT200 12V Battery Tester | 100–2000 CCA
$142.99
Before you order
Delivery, returns and product support
Review the practical details below, then confirm the selected variant and compatibility requirements shown on this page.
30-day returns
Request a return within 30 days of delivery. Contact us before sending an item so we can provide the correct return instructions.
View return policyManuals & documents
Model-specific PDF manuals appear on the product page when available. Our downloads center explains how to request a missing document.
Visit downloads centerConfirm product fit
For critical dimensions, device compatibility or regulated work, verify the selected variant and application before ordering.
Contact product supportDelivery estimates begin after dispatch and are not guarantees. Products may ship from third-party fulfillment partners and separate items may arrive in different packages.
Verified product information
Details for TOPDON BT100 / BT200 12V Battery Tester | 100–2000 CCA
Product overview
The TOPDON BT100 and BT200 are compact battery-system analyzers for 12V lead-acid batteries. Both models evaluate battery condition, cranking performance, charging-system behavior, and ripple for Flooded, AGM, Gel, EFB, and VRLA batteries rated from 100–2000 CCA. Choose BT100 for straightforward 12V diagnostics with a 2-inch backlit display, or BT200 for a 2.4-inch color display plus 24V cranking and charging-system tests. The key distinction is important: neither model performs a 24V battery health test; BT200's 24V capability applies only to cranking and charging-system modes. These testers diagnose—they do not charge, repair, or jump-start a battery.
Key Features
- 12V lead-acid battery health testing for 100–2000 CCA and 30–220 Ah (GB input range).
- Supports Flooded, AGM, Gel, EFB, and VRLA batteries and CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, and GB standards.

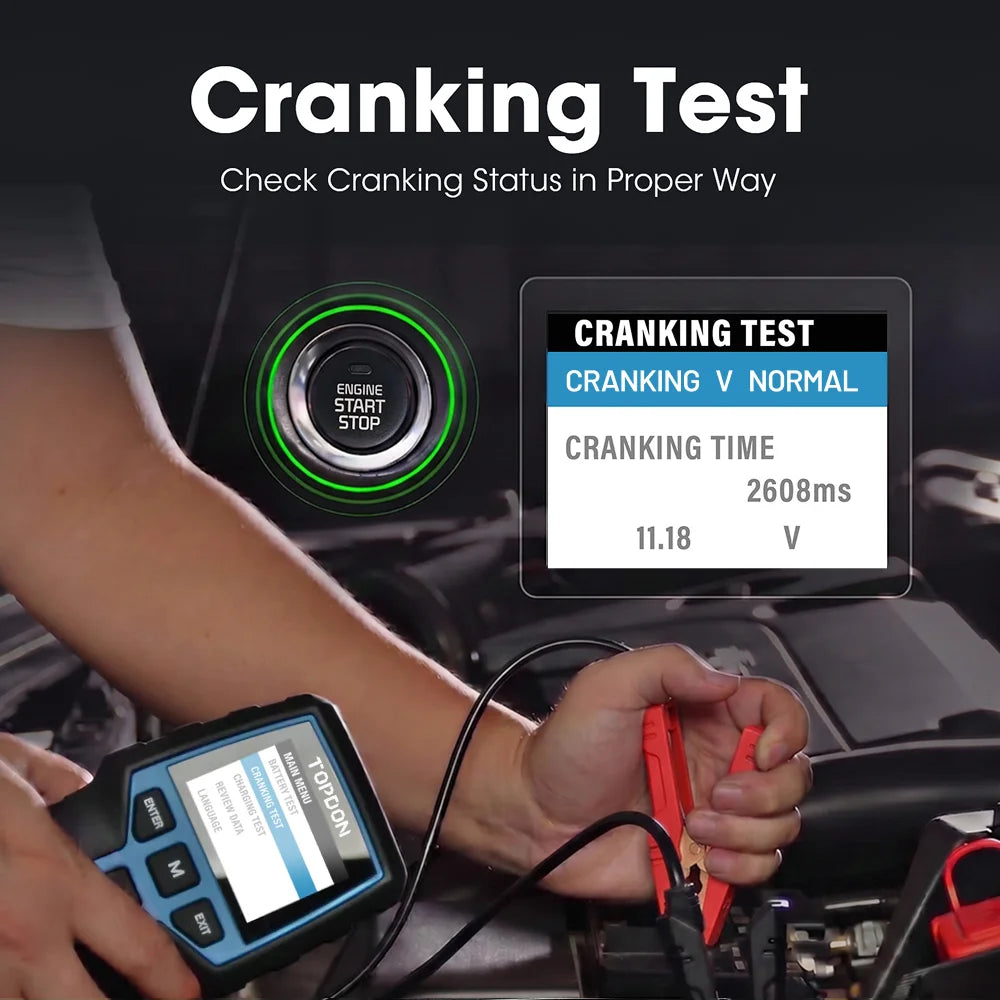

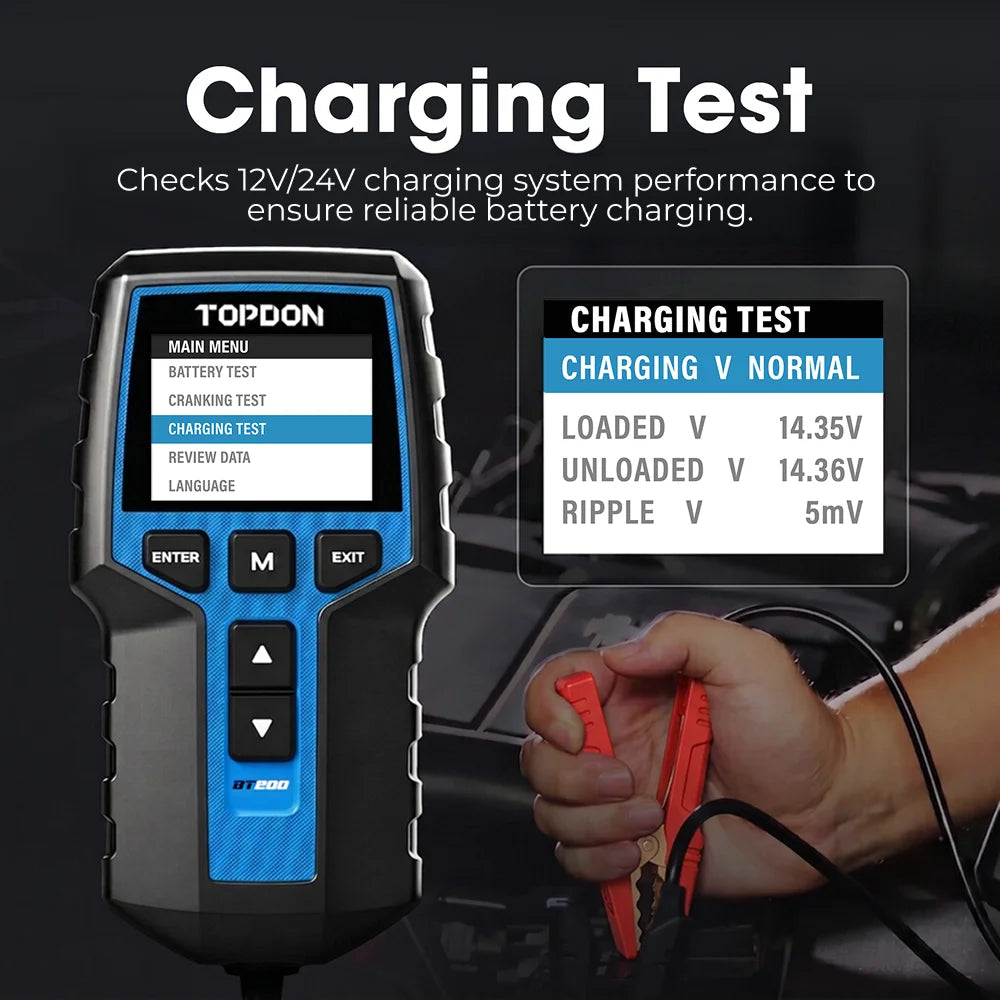

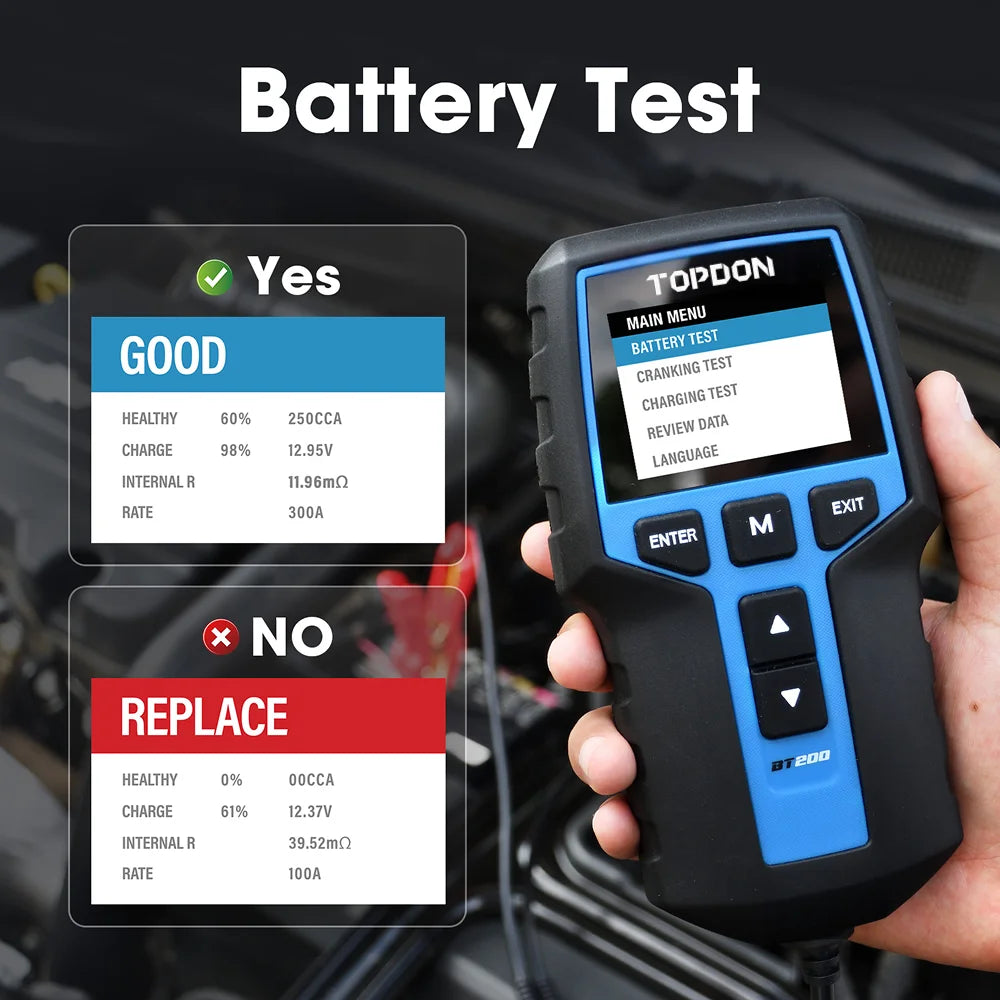

- Battery, cranking, charging, and ripple tests help separate battery, starting, and charging-system faults.

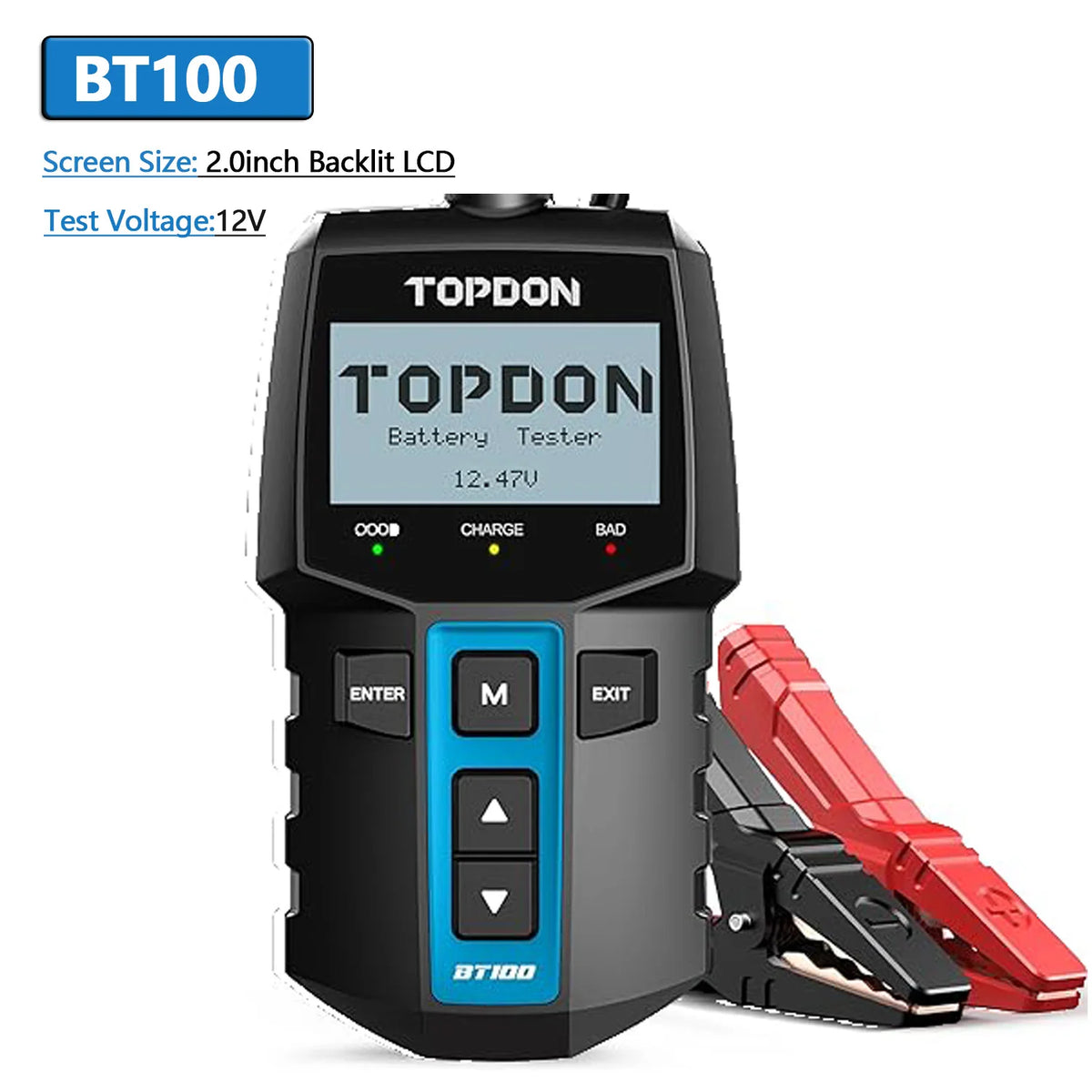

- BT100: 2-inch backlit display; 12V battery, cranking, and charging tests.

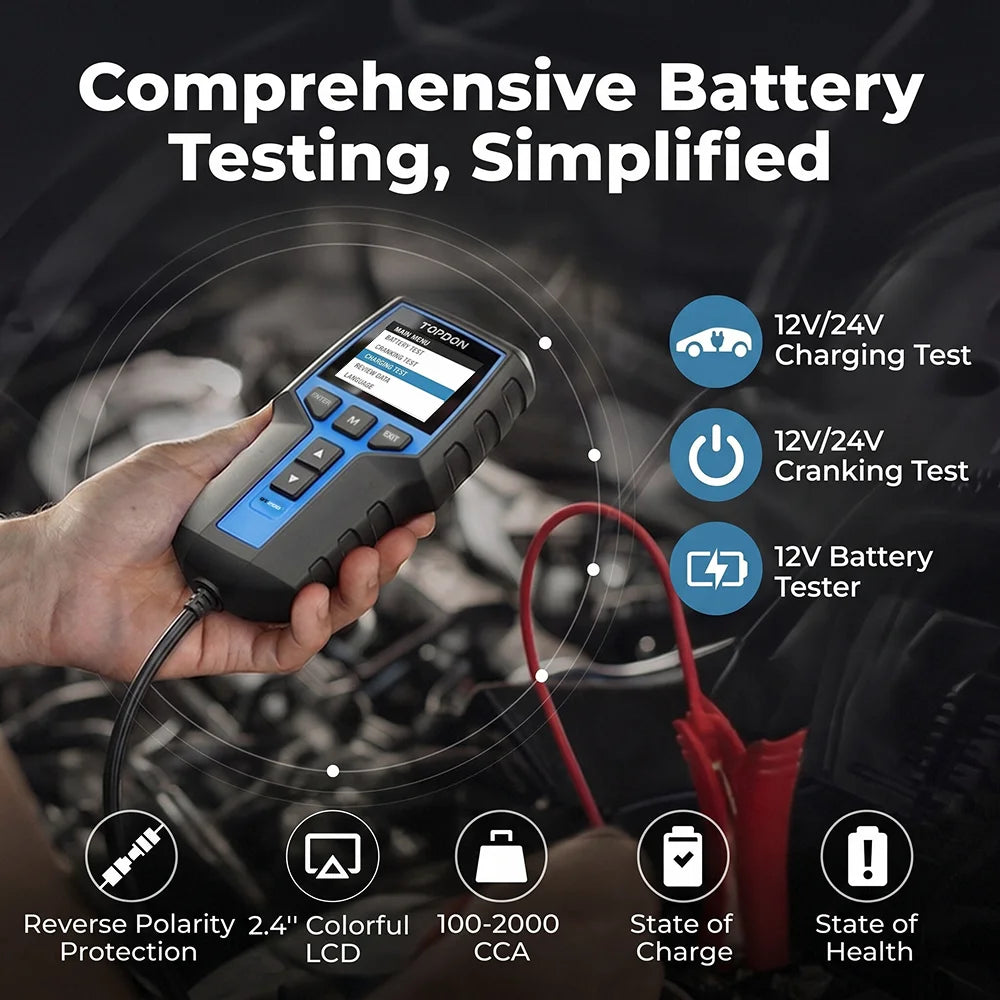

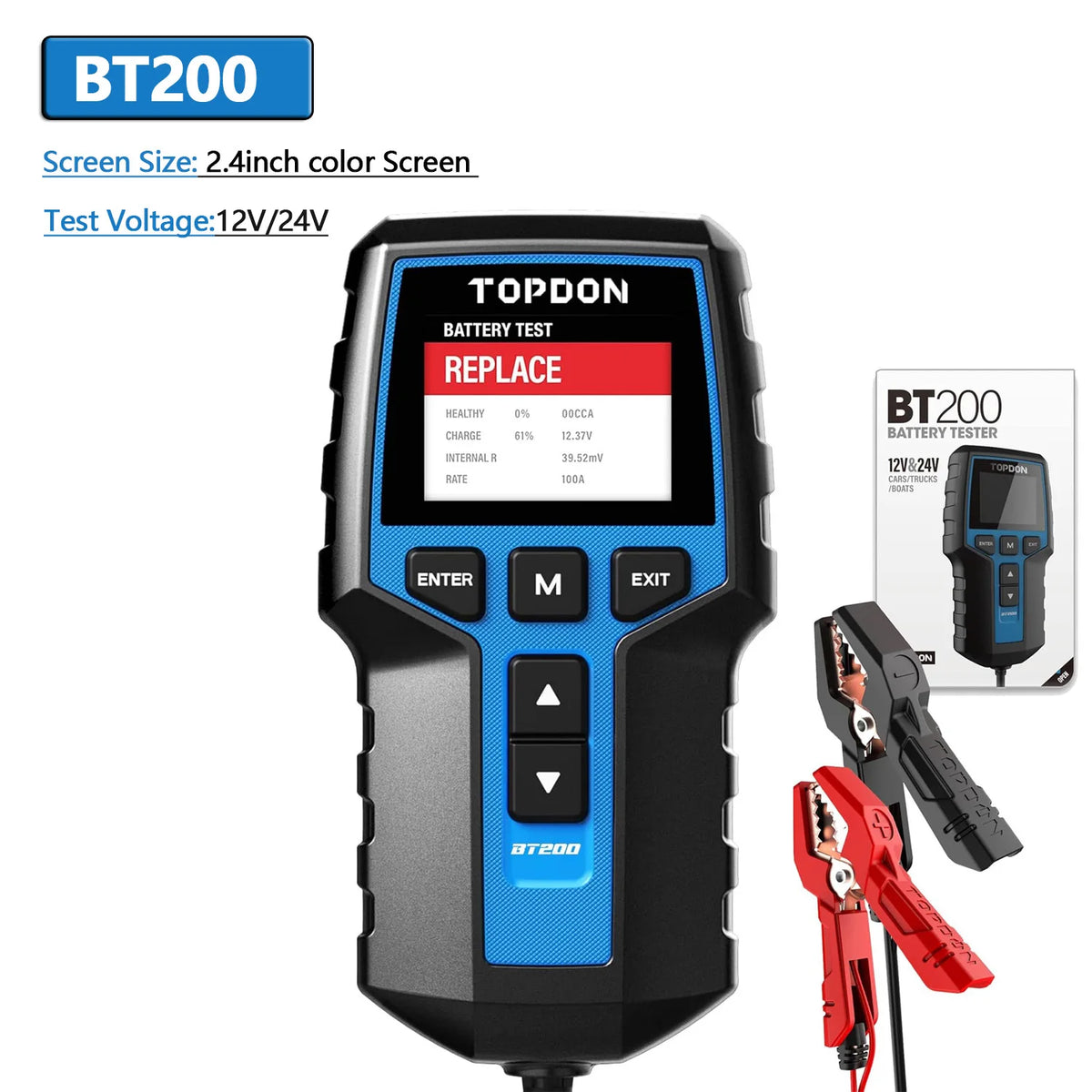

- BT200: 2.4-inch color display; 12V battery test plus 12V/24V cranking and charging-system tests.
- Reverse-polarity protection is listed by the manufacturer.
Best For
Passenger vehicles, light trucks, garages, mobile technicians, and DIY users who need a quick lead-acid battery and charging-system check. Use BT200 when 24V cranking or charging-system diagnostics are needed.
Technical Specifications
| Specification | BT100 | BT200 |
|---|---|---|
| Battery test | 12V lead-acid | 12V lead-acid |
| Cranking test | 12V | 12V / 24V |
| Charging-system test | 12V | 12V / 24V |
| CCA test range | 100–2000 CCA | 100–2000 CCA |
| GB capacity input | 30–220 Ah | 30–220 Ah |
| Supported batteries | Flooded, AGM, Gel, EFB, VRLA | Flooded, AGM, Gel, EFB, VRLA |
| Battery standards | CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, GB | CCA, CA, BCI, MCA, DIN, IEC, EN, SAE, JIS, GB |
| Display | 2-inch backlit LCD | 2.4-inch color display |
Choose Your Model
- BT100 — 12V-only battery, cranking, and charging-system diagnostics.
- BT200 — 12V battery diagnostics with 12V/24V cranking and charging-system diagnostics.
Compatibility
For 12V lead-acid automotive batteries only. Select the correct battery type and standard before testing. The listed materials do not verify support for lithium, 6V, or 24V battery health testing.
What's Included
One selected TOPDON battery tester and a user manual. Confirm package contents with the selected supply source before fulfillment.
Important Limitations
- Not a battery charger, maintainer, jump starter, or repair tool.
- BT200 does not test the health of a 24V battery; its 24V functions are limited to cranking and charging-system tests.
- Results depend on correct battery specification entry, connection quality, and vehicle condition.
Safety & Use Notes
Follow the model-specific manufacturer manual. Connect clamps with correct polarity, work around batteries in a ventilated area, and keep sparks or flames away from battery gases. Do not use the tester on visibly damaged or leaking batteries.
Frequently Asked Questions
Can BT100 test a 24V system? No. Its listed battery, cranking, and charging tests are 12V.
Can BT200 test a 24V battery? No. BT200 performs a 12V battery test; it adds 24V cranking and charging-system tests.
Will either model charge my battery? No. Both are diagnostic tools only.
Do they support lithium batteries? Lithium support is not verified in the supplied materials, so it is not claimed.
User Manual & Downloads
BT100 and BT200 PDF manuals are not currently hosted. Contact support@instrunexa.com with your model name to request the correct English manual.
Technical specifications
Typical applications
- 12V lead-acid battery health checks
- Passenger vehicle and light-truck diagnostics
- Cranking-system troubleshooting
- Alternator and charging-system checks
- Garage and mobile technician use
What's in the box
- One selected TOPDON BT100 or BT200 tester
- User manual
Compatibility and requirements
Limitations and product fit
Safety and handling
Warranty information
Frequently asked questions
Product visuals
A closer look at TOPDON BT100 / BT200 12V Battery Tester | 100–2000 CCA
Review the available product, interface, accessory and specification images before selecting a variant.
Images can illustrate more than one option. The selected variant name and written specifications on this page determine what is included.
