FNIRSI DMC-100 True RMS AC/DC Clamp Meter | 600A, 10,000 Count

FNIRSI DMC-100 True RMS AC/DC Clamp Meter | 600A, 10,000 Count

Availability: In stock
Product type: Clamp Multimeters
$65.99
Configuration: Standard Kit
Product subtotal: $65.99
FNIRSI DMC-100 True RMS AC/DC Clamp Meter | 600A, 10,000 Count
$65.99
$65.99
Configuration: Standard Kit
FNIRSI DMC-100 True RMS AC/DC clamp meter with test leads
FNIRSI DMC-100 True RMS AC/DC Clamp Meter | 600A, 10,000 Count
$65.99

Before you order

Delivery, returns and product support

Review the practical details below, then confirm the selected variant and compatibility requirements shown on this page.

U.S. shipping

Processing normally takes 1–3 business days. Standard delivery is estimated at 7–15 business days; Express is estimated at 4–8 business days where available.

View shipping policy

30-day returns

Request a return within 30 days of delivery. Contact us before sending an item so we can provide the correct return instructions.

View return policy

Manuals & documents

Model-specific PDF manuals appear on the product page when available. Our downloads center explains how to request a missing document.

Visit downloads center

Confirm product fit

For critical dimensions, device compatibility or regulated work, verify the selected variant and application before ordering.

Contact product support

Delivery estimates begin after dispatch and are not guarantees. Products may ship from third-party fulfillment partners and separate items may arrive in different packages.

Verified product information

Details for FNIRSI DMC-100 True RMS AC/DC Clamp Meter | 600A, 10,000 Count

Product overview

FNIRSI DMC-100 is a rechargeable 10,000-count True RMS clamp multimeter designed for electricians, technicians, automotive troubleshooting, solar and battery-system checks, and general electrical maintenance. Its clamp measures AC or DC current without opening the circuit, while the included test leads support voltage, resistance, capacitance, frequency, diode, and continuity measurements. A 2.0-inch 240 × 320 color TFT display provides numerical readings, minimum/maximum values, waveform trends, and a power-measurement screen. The compact 25 mm (0.98 in) jaw is suited to individual conductors in panels, equipment, and vehicle wiring. Manual range selection, data hold, storage for up to 30 records, NCV screening, live-wire identification, a flashlight, and USB-C charging make it a versatile field tool.

Key Features

  • 10,000-count True RMS measurement with AC/DC clamp current up to 600 A
  • DC voltage up to 999.9 V and AC voltage up to 750.0 V

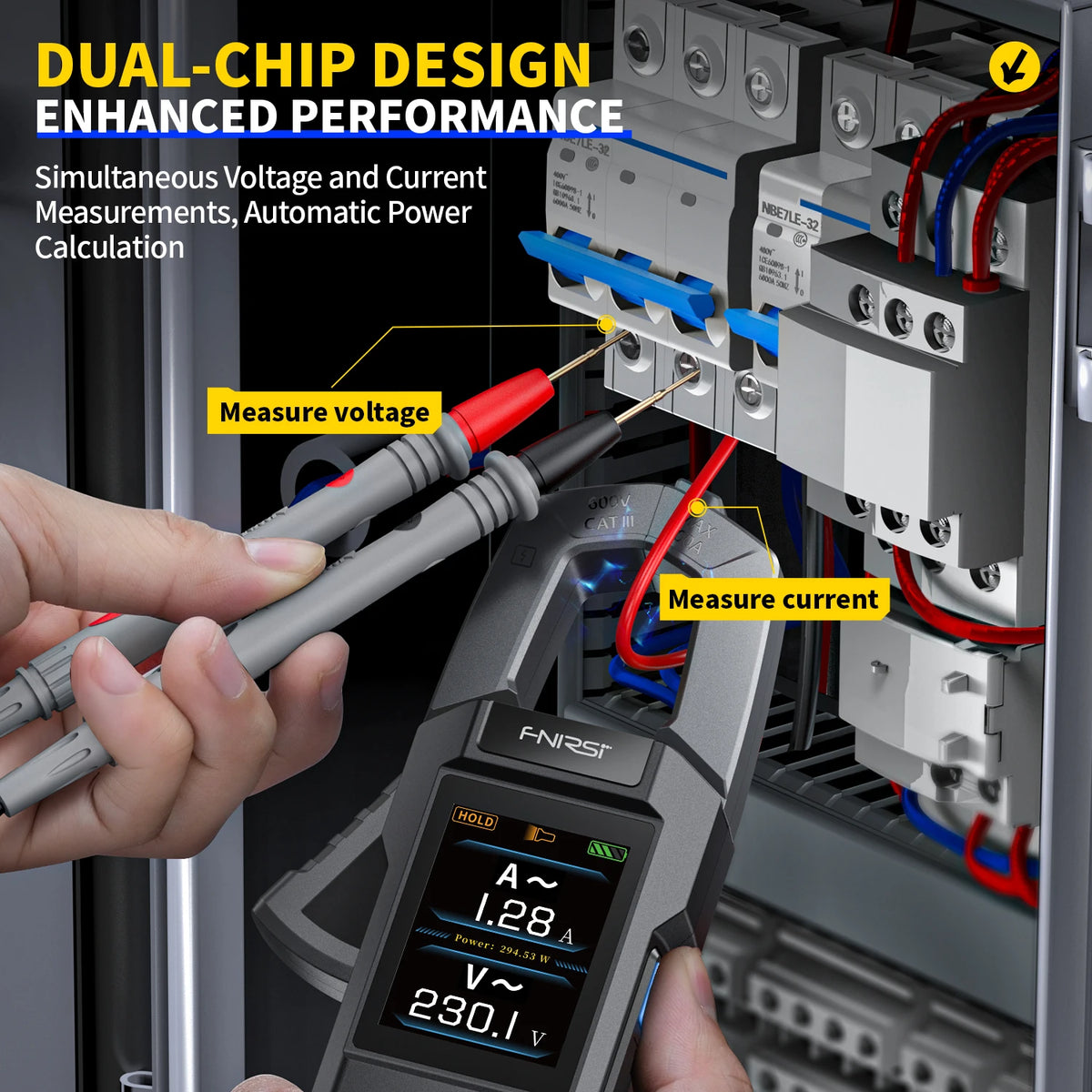

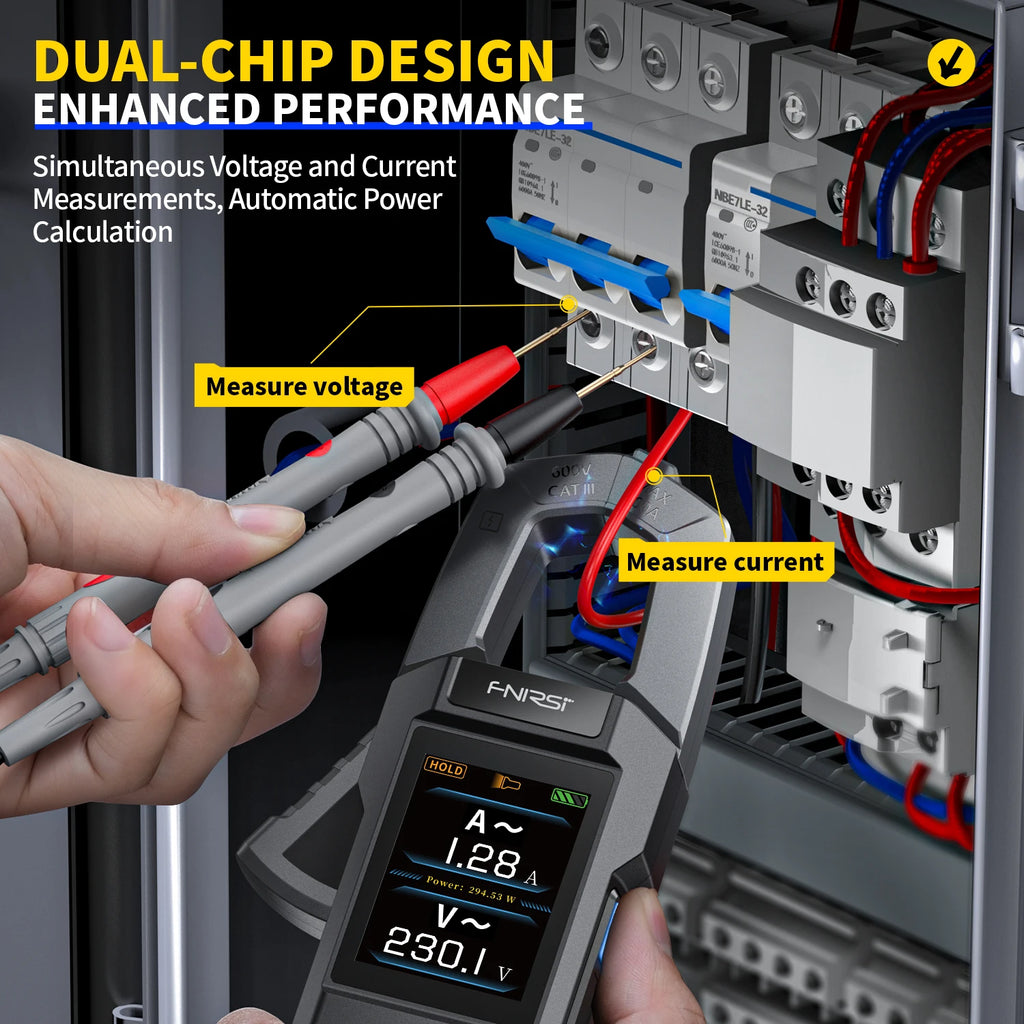

  • General, waveform, and calculated power measurement modes
  • 2.0-inch 240 × 320 color TFT display with adjustable brightness

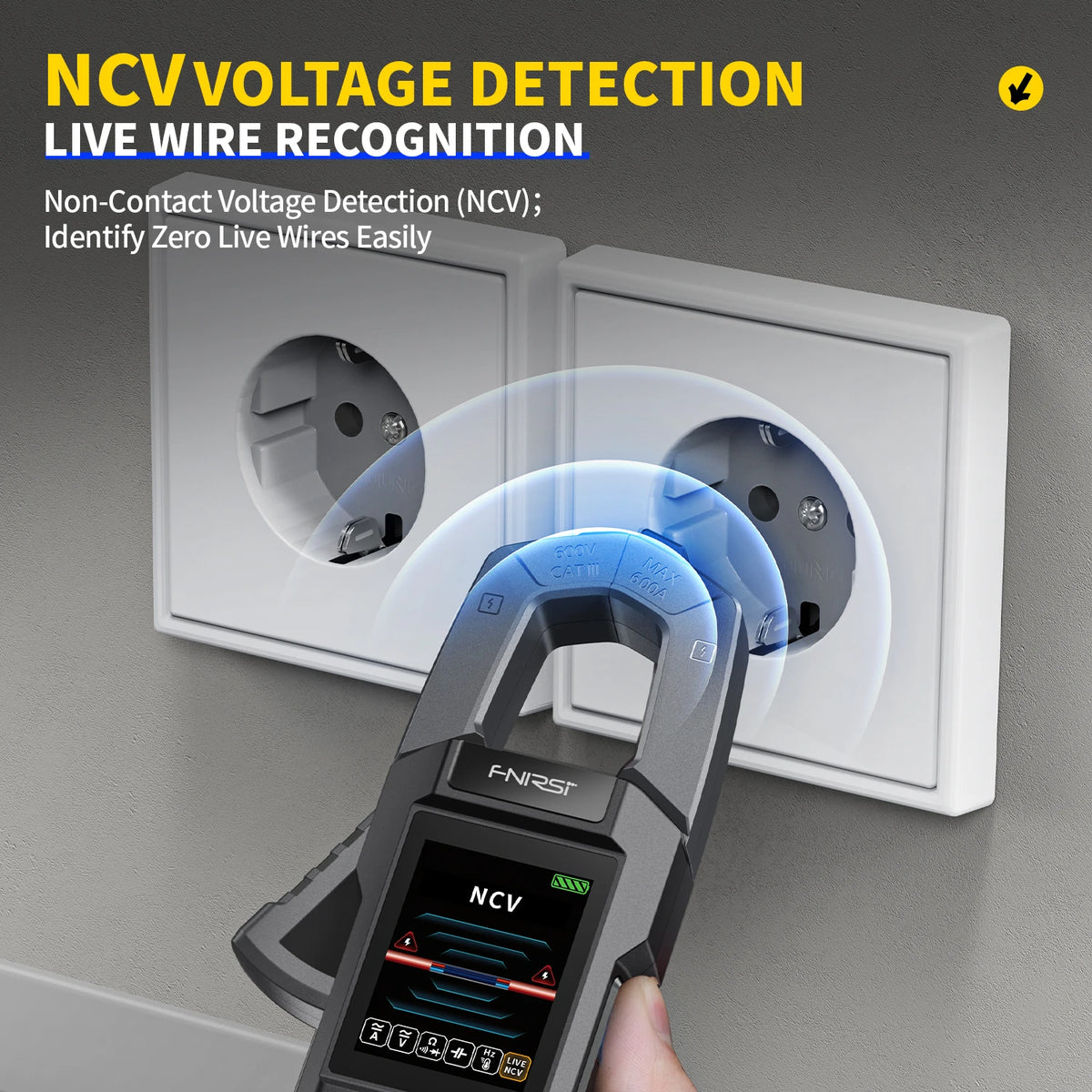

  • NCV screening, live-wire identification, continuity, diode, resistance, capacitance, frequency, and temperature functions
  • Built-in 3.7 V 1500 mAh battery with USB-C 5 V/1 A charging

Best For / Typical Applications

  • Electrical installation, maintenance, and appliance troubleshooting
  • Automotive, battery, charging-system, and low-voltage DC current checks
  • Solar, inverter, bench, and electronics diagnostics within the meter's documented limits
  • Comparing load current, voltage, and calculated power during equipment testing

Technical Specifications

Model FNIRSI DMC-100
Display 2.0-inch color TFT, 240 × 320 pixels, 10,000-count
AC/DC current 99.99 A / 600.0 A; stated accuracy ±(2.5% + 10 digits)
DC voltage 9.999 V / 99.99 V / 999.9 V; stated accuracy ±(0.5% + 3 digits)
AC voltage 9.999 V / 99.99 V / 750.0 V; stated accuracy ±(1% + 3 digits)
Resistance Up to 99.99 MΩ; stated accuracy ±(1.5% + 3 digits)
Capacitance Up to 99.99 mF; accuracy varies by range
Frequency Up to 9.999 MHz; stated accuracy ±(0.1% + 2 digits)
Temperature input -55 to 1300°C (-67 to 2372°F); stated accuracy ±(2.5% + 5 digits)

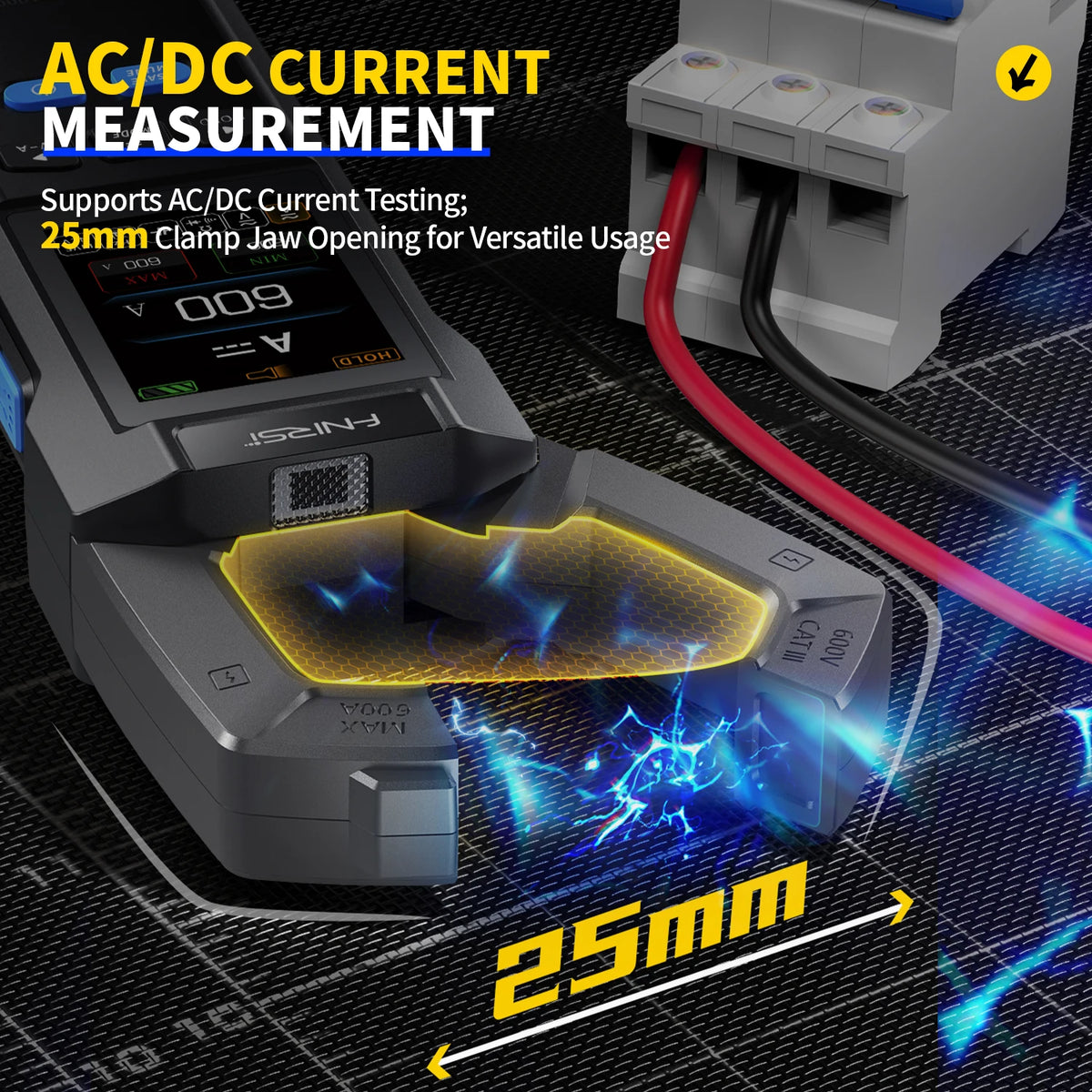

Maximum jaw opening 25 mm (0.98 in)
Data storage Up to 30 records
Power 3.7 V 1500 mAh rechargeable lithium battery; USB-C 5 V/1 A
Dimensions 193 × 74 × 32 mm (7.60 × 2.91 × 1.26 in)
Weight 194 g (6.84 oz)

Configuration Guide

This listing contains one Standard Kit. The former country-of-dispatch choices have been removed because they did not represent different product configurations.

Compatibility

No mobile app is specified. The USB-C port supports charging and firmware transfer. FNIRSI states that firmware updates must be performed on Windows 10 or Windows 11; macOS is not supported for firmware updating and may render the device inoperable.

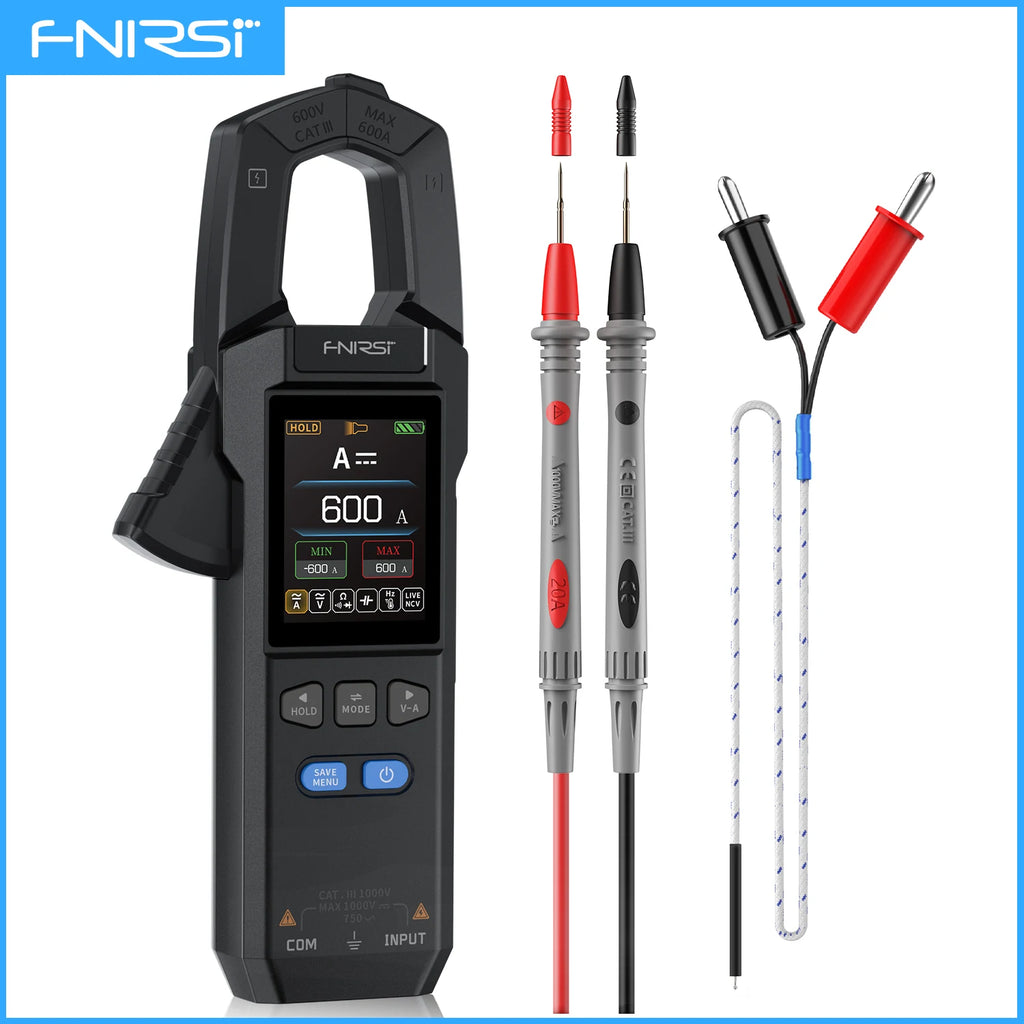

What’s Included

  • DMC-100 clamp multimeter
  • Red and black test leads
  • Temperature probe
  • USB Type-C charging cable
  • User manual and retail box

Important Limitations

  • Clamp one insulated conductor at a time; clamping a complete cable containing both supply and return conductors can cancel the magnetic field and produce an incorrect current reading.
  • The 25 mm jaw may not fit large service or industrial conductors.
  • NCV and live-wire indications are screening aids, not proof that a circuit is de-energized.
  • The supplied specifications do not establish an independently verified measurement-category certification. Do not assume suitability for high-energy service entrances or distribution equipment solely from markings shown in product images.
  • Temperature accuracy depends on the supplied probe, contact, and operating conditions.

Safety & Use Notes

Inspect the meter, clamp, leads, and insulation before use. Hold probes behind the finger guards and never touch input terminals during a measurement. Disconnect the probes before changing the range or function. Use additional caution above 36 V DC or 25 V AC. Do not use in flammable or explosive environments, and do not operate the meter while it is charging.

Frequently Asked Questions

Does the clamp measure both AC and DC current?
Yes. Select the appropriate AC or DC current mode and zero the DC-current reading before measurement.

Is the DMC-100 auto-ranging?
No. The documented measurement ranges are selected manually.

Can I clamp around an appliance power cord?
Normally no. Clamp around a single conductor; enclosing both live and neutral can cancel the fields.

Can I update firmware from a Mac?
No. FNIRSI specifies Windows 10 or 11 for firmware updates and warns against using macOS.

User Manual & Downloads

Download FNIRSI DMC-100 User Manual (PDF)
English, revision V1.3.

Technical specifications
Model: FNIRSI DMC-100
Display: 2.0 in, 240 × 320 TFT; 10,000 counts
Current: 99.99 A / 600.0 A AC and DC; stated accuracy ±(2.5% + 10)
DC voltage: 9.999 V / 99.99 V / 999.9 V; stated accuracy ±(0.5% + 3)
AC voltage: 9.999 V / 99.99 V / 750.0 V; stated accuracy ±(1% + 3)
Resistance: up to 99.99 MΩ
Capacitance: up to 99.99 mF
Frequency: up to 9.999 MHz
Temperature display range: -55 to 1300 °C (-67 to 2372 °F), subject to supplied probe limits
Jaw opening: 25 mm (0.98 in)
Battery: 3.7 V, 1500 mAh rechargeable lithium battery
Charging: USB Type-C, 5 V / 1 A
Dimensions: 193 × 74 × 32 mm (7.60 × 2.91 × 1.26 in)
Weight: 194 g (6.84 oz)
Interface languages: English and Chinese
Typical applications
  • Residential and commercial electrical troubleshooting
  • Automotive 12 V and 24 V DC current checks
  • HVAC equipment diagnostics
  • Appliance and power-supply testing
  • Non-contact voltage screening before confirmatory testing
What's in the box
  • FNIRSI DMC-100 clamp meter
  • Test leads
  • Temperature probe
  • USB Type-C charging cable
  • English user manual
  • Retail packaging
Compatibility and requirements
Standalone measuring instrument; no mobile app or Bluetooth connection is required. The meter can display English or Chinese. FNIRSI firmware tools are advertised for Windows 10/11 only; the manufacturer warns that macOS updates are unsupported and may damage the device.
Limitations and product fit
Clamp only one conductor at a time. The 25 mm jaw opening limits conductor size. NCV is a screening function and must not be used as proof that a circuit is de-energized. The temperature range shown by the meter does not override the temperature probe’s own safe range. Accuracy figures are manufacturer-stated specifications, not an independent calibration certificate. A measurement-category certification was not independently verified for this listing.
Safety and handling
Inspect the case, jaw, leads and insulation before use. Keep fingers behind probe and clamp guards. Do not touch exposed terminals. Disconnect test leads before changing functions or opening the jaw around a conductor. Use extra caution above 36 V DC or 25 V AC. Do not operate the meter while it is charging or in explosive environments. NCV detection does not replace a properly rated contact tester and lockout/tagout procedures.
Warranty information
Store warranty and return terms apply; no separate manufacturer warranty term is claimed for this listing.
Frequently asked questions
Q: Can the clamp measure DC current?
A: Yes. The DMC-100 measures both AC and DC clamp current up to 600 A. Zero the DC-current reading before measurement and clamp one conductor only.

Q: Does it measure voltage through the clamp?
A: No. Voltage, resistance, capacitance, frequency, diode, continuity and temperature measurements use the supplied input leads or probe.

Q: Is NCV proof that a wire is safe to touch?
A: No. NCV is a screening aid. Confirm de-energized status with an appropriately rated contact tester and follow applicable safety procedures.

Q: Can it be used while charging?
A: No. The manual instructs users not to measure while the meter is charging.

Q: Does it connect to a phone?
A: No phone app or Bluetooth function is specified.

Q: What computer is needed for firmware updates?
A: FNIRSI lists Windows 10/11; its firmware page warns that macOS updates are unsupported.

Product visuals

A closer look at FNIRSI DMC-100 True RMS AC/DC Clamp Meter | 600A, 10,000 Count

Review the available product, interface, accessory and specification images before selecting a variant.

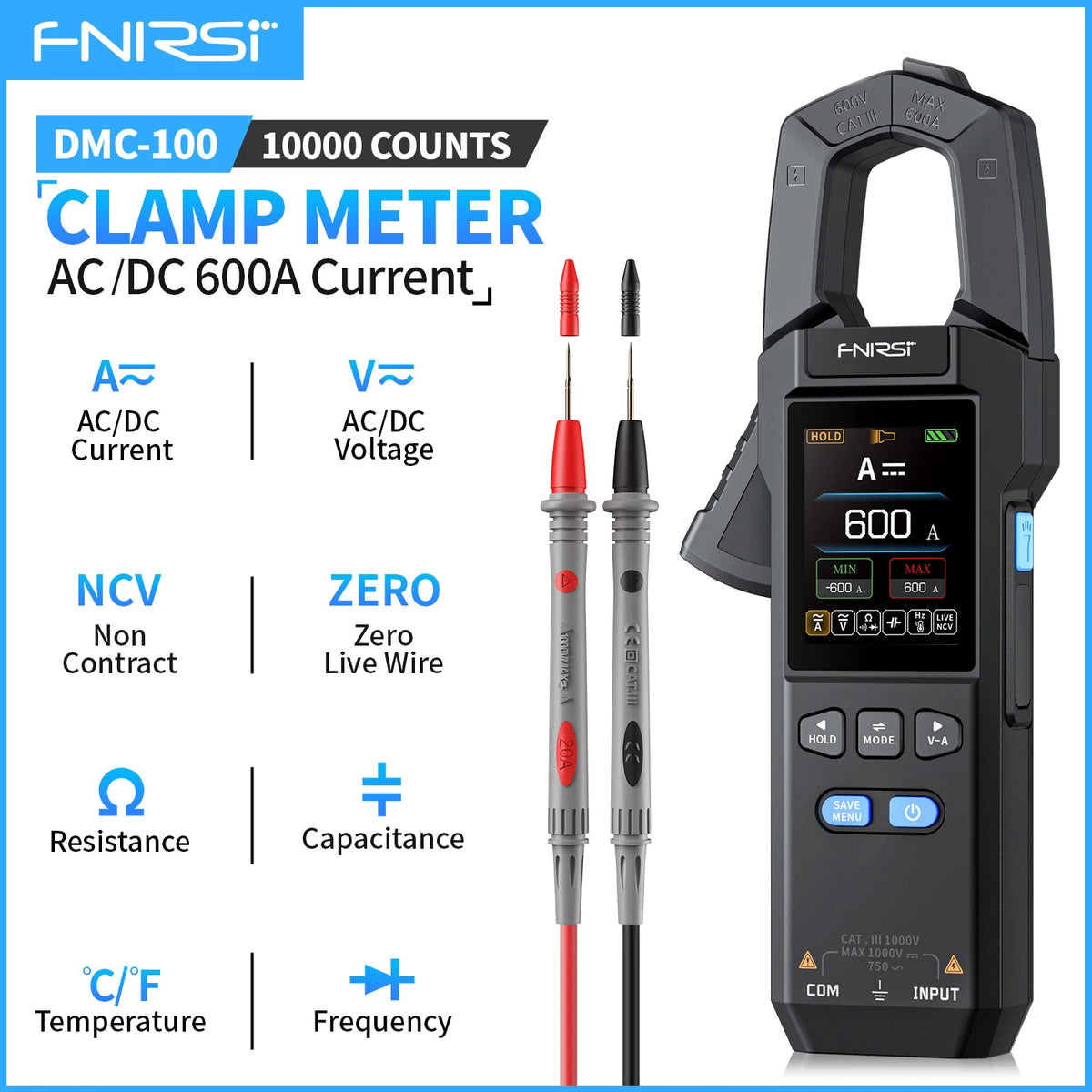

FNIRSI DMC-100 10,000-count color display clamp multimeter

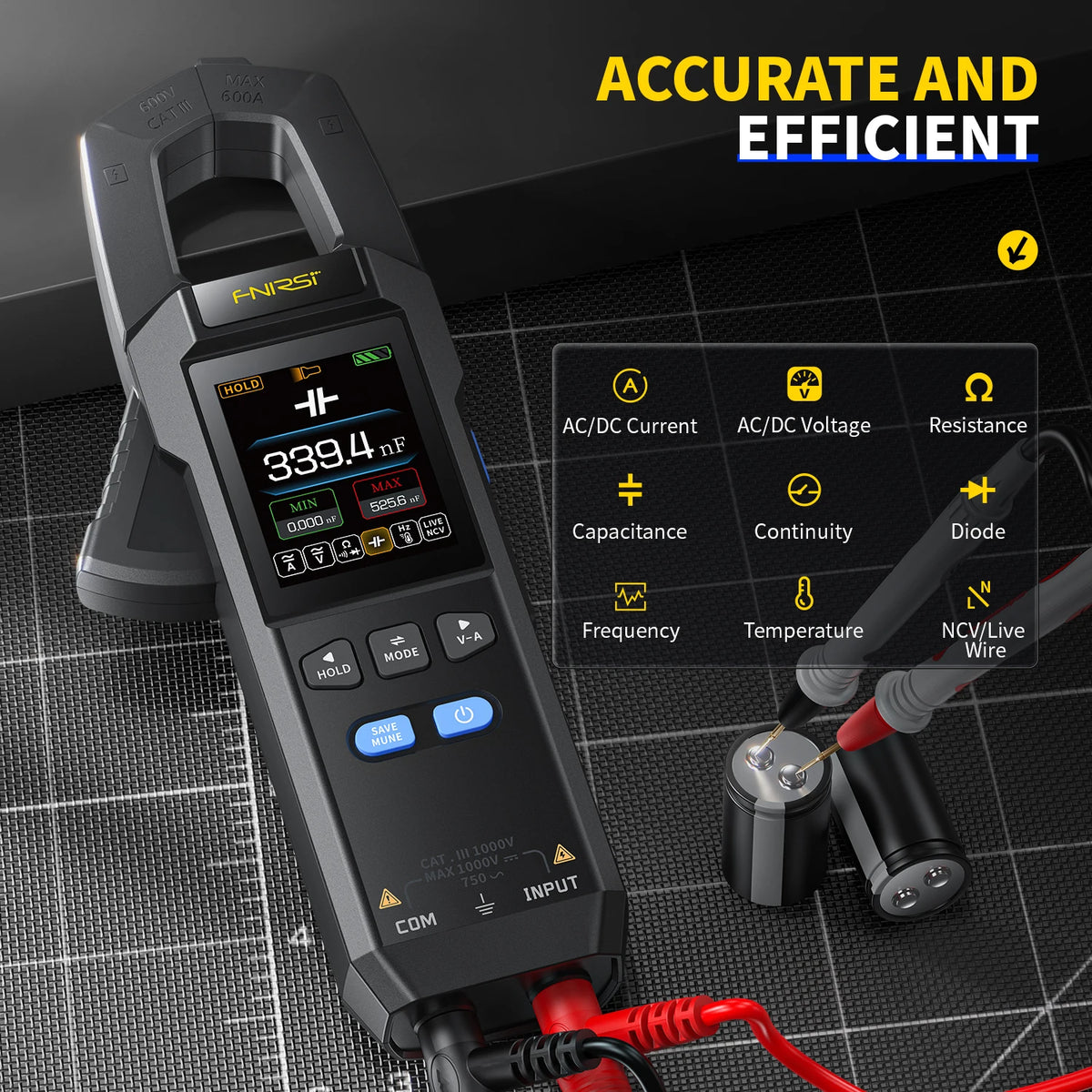

FNIRSI DMC-100 clamp meter for single-conductor current testing
FNIRSI DMC-100 multimeter measurement interface and controls
FNIRSI DMC-100 USB-C rechargeable clamp meter features
FNIRSI DMC-100 clamp multimeter accessories and test probes

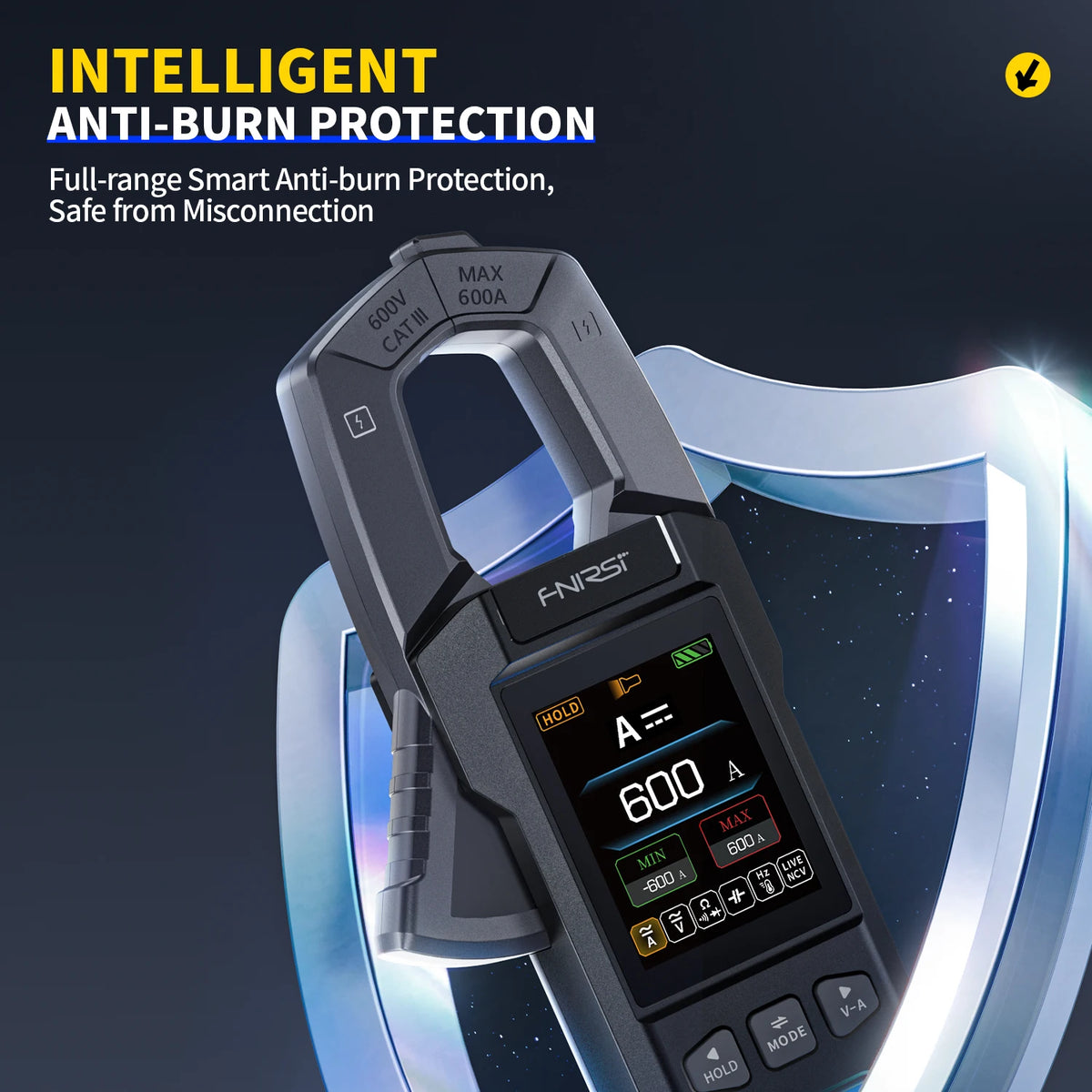

FNIRSI DMC-100 electrical testing tool specifications

Images can illustrate more than one option. The selected variant name and written specifications on this page determine what is included.

Product manual & technical documents

Download the official electronic manual for FNIRSI DMC-100 True RMS AC/DC Clamp Meter | 600A, 10,000 Count. Use it for model-specific setup, operation, safety information, and reference.

PDF document Language: English Revision: V1.3
Download PDF manual
